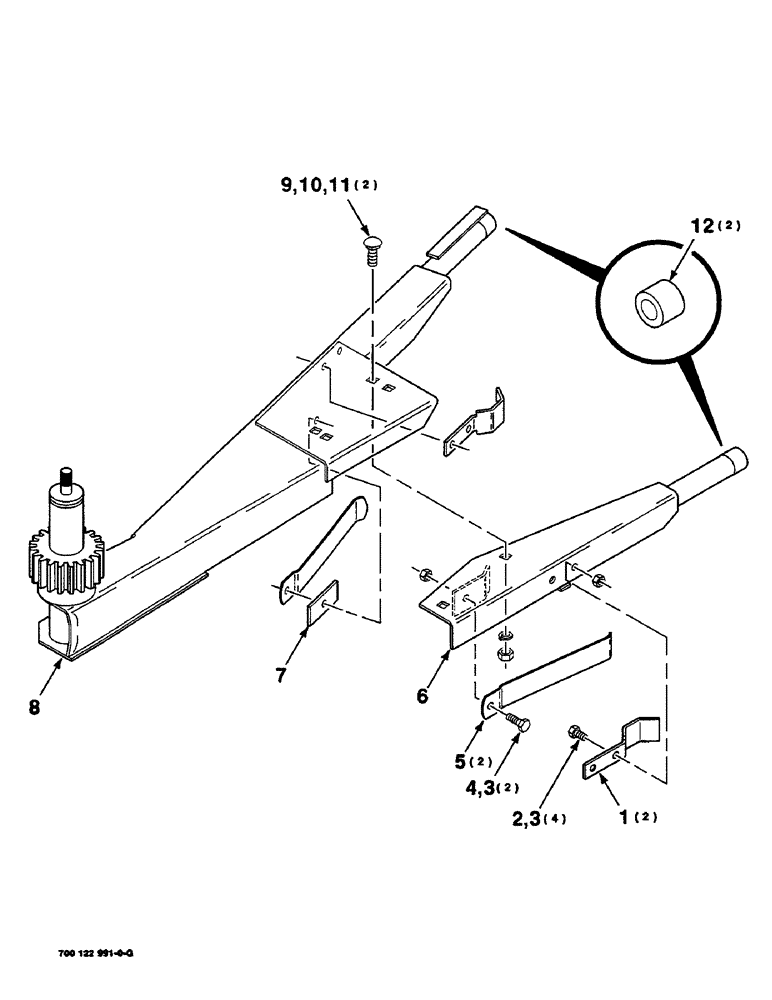

Запчасти Case IH 8460 (6-08) - DUAL TWINE ARM ASSEMBLY (14) - BALE CHAMBER

1

700122987

GUIDE

- twine

2шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

700707665

LARGE PLATE

SPRING - leaf

2шт.

6

700122975

ARM

WA - twine (Includes item 12)

1шт.

7

700122988

LARGE PLATE

PLATE

1шт.

8

700122980

ARM

WA - twine (Includes item 12)

1шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

700107983

GUIDE

2шт.
