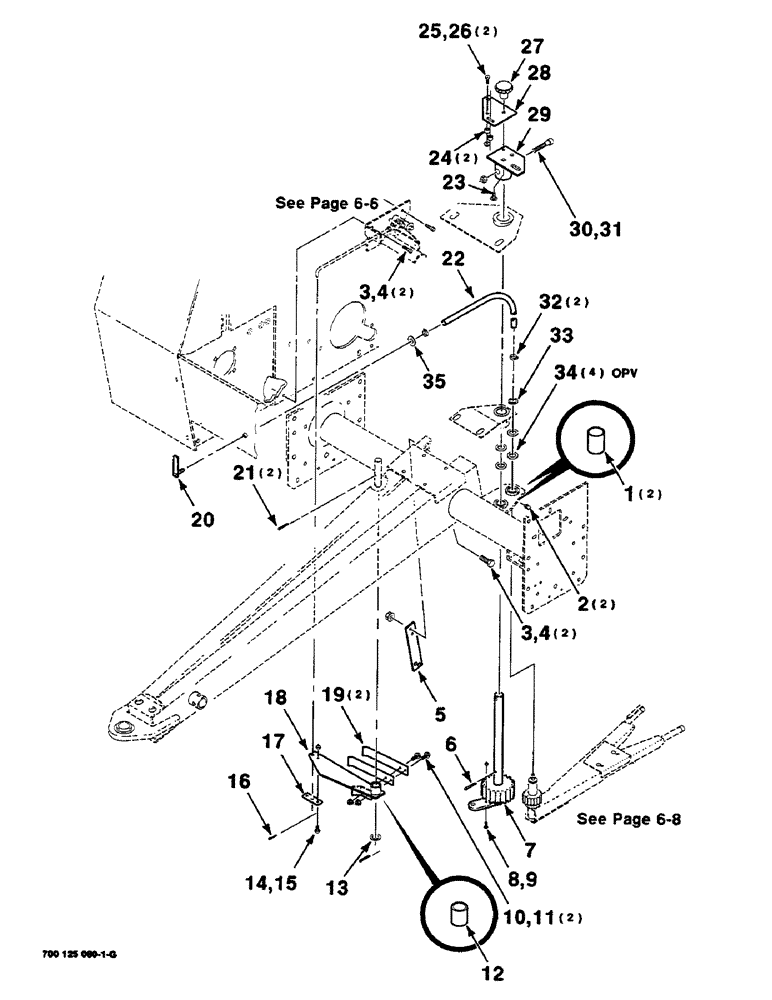

Запчасти Case IH 8460 (6-04) - GEARBOX AND THREADER MOUNTING ASSEMBLIES (14) - BALE CHAMBER
№
Артикул
Название
Примечание
Количество
1
740514
BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L
- oilite
2шт.
2
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
2шт.
3
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
4
231-5146
FLANGE NUT,3/8"-16
4шт.
5
700119936
GUIDE
PLATE
1шт.
6
432-1628
COTTER PIN,1/4" x 1 3/4"
Pin, Split (Cotter), 1/4" x 1 3/4"
1шт.
7
700115955
SHAFT
WA
1шт.
8
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
5/16-18 X 1-1/4 C
1шт.
9
230-4115
LOCK NUT,5/16"-18, GA
5/16-18 HTLN GR/B
1шт.
10
121-115
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
2шт.
11
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT, Flg, USR, 5/16"-18
2шт.
12
740217
BUSHING
1шт.
13
495-81070
WASHER,1 1/32" x 1 1/2" x .120"
1 X 10 GAUGE NRMB
1шт.
14
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
1шт.
15
232-4114
LOCK NUT,1/4"-20, GC
1/4-20 HTLN GR B
1шт.
16
432-1012
COTTER PIN,5/32" x 3/4"
5/32" x 3/4"
1шт.
17
700125064
MOUNTING PARTS
MOUNT - magnet
1шт.
18
700122971
LEVER
WA (Includes item 12)
1шт.
19
700710074
LARGE PLATE
SPRING - leaf
2шт.
20
700107974
INDICATOR
WA
1шт.
21
432-1228
COTTER PIN,3/16" x 1 3/4"
3/16" x 1 3/4"
2шт.
22
700707201
HOSE
1шт.
23
433-512
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
1шт.
24
700125069
SPACER
2шт.
25
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
27
700707234
BUTTON
KNOB
1шт.
28
700125103
PLATE
1шт.
29
700125072
PLATE
WA
1шт.
30
61-33832
HEX SOC SCREW,3/8 - 16 x 2"
3/8-16 X 2 HSHCS SPL
1шт.
31
231-4116
NUT,3/8"-16, GB
3/8-16 HTLN GR/B
1шт.
32
214-1406
HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm
CLAMP, HOSE, #06, .44/.78 Type F Worm
2шт.
33
103-11125
SNAP RING,#125, Ext
Ring, Snap, #125, Ext
1шт.
34
495-81205
WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk
1-1/4 X 14 GAUGE NRMB
4шт.
35
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 HARDENED PLAIN WASHER
1шт.
Выбрано товаров: 35
