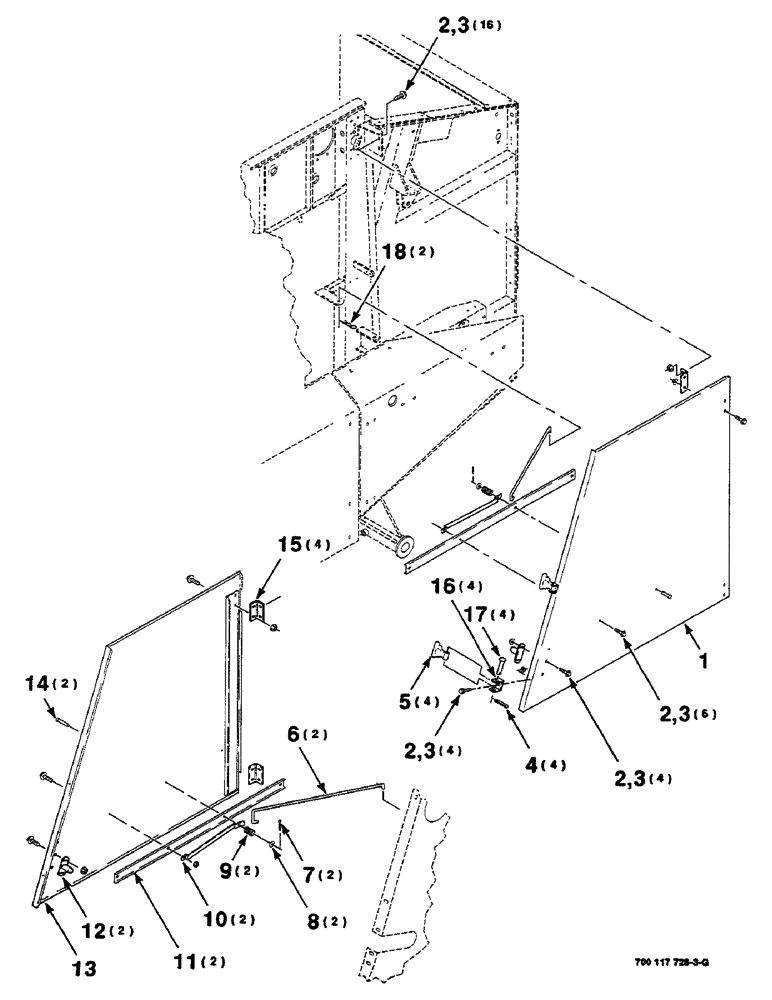

Запчасти Case IH 8460 (7-14) - SHIELDS ASSEMBLY, UPPER SIDE (12) - MAIN FRAME

1

700117052

SHIELD

WA - left

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

30шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

30шт.

4

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

4шт.

5

494307C1

LATCH

HOOK - rubber

4шт.

6

700117067

SUPPORT

2шт.

7

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

8

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

9

754606

SPRING

- compression

2шт.

10

700117061

LATCH

- upper

2шт.

11

700117066

CHANNEL

- reinforcement

2шт.

12

700117058

SUPPORT

WA

2шт.

13

700117062

SHIELD

WA - right

1шт.

14

439-5532

HEADED PIN,5/16" x 2"

5/16 X 2 CLEVIS PIN

2шт.

15

700707701

HINGE

- butt

4шт.

16

776674

SUPPORT

BASE - anchor

4шт.

17

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

4шт.

18

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.
