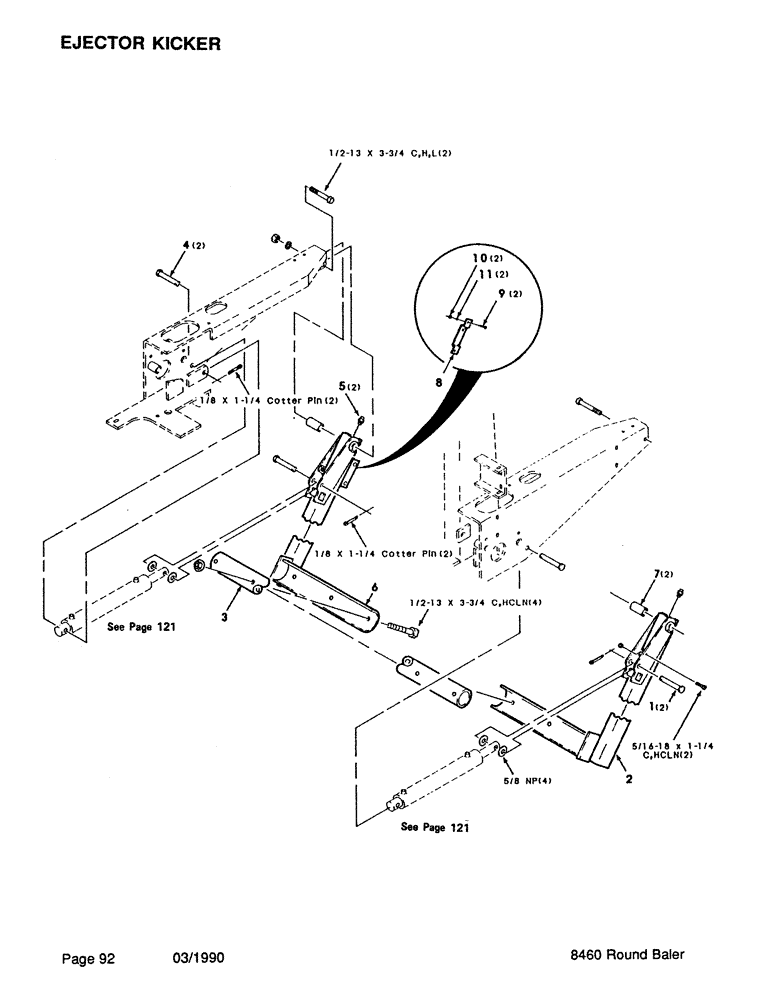

Запчасти Case IH 8460 (092) - EJECTOR KICKER (16) - BALE EJECTOR

1

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 x 2-1/2 CLEVIS PIN

2шт.

2

700115945

STRUT

- kicker, left

1шт.

3

700115944

PIPE

- cross

1шт.

4

763227

BRACKET

5/8 x 3 CLEVIS PIN

2шт.

5

77032

FITTING

1/4-28 ZERK

2шт.

6

700122576

STRUT

- kicker, right

1шт.

7

700115943

TUBE,25.4 mm OD, 61 mm Length

BUSHING

2шт.

8

700122757

SUPPORT

- actuator

1шт.

9

700710188

SCREW

NO. 6-32 x 3/4 CRPHMS - stainless steel

2шт.

10

700710189

LOCK NUT

NO. 6-32 x 3/4 LHSN - stainless steel

2шт.

11

700710187

WASHER

NO. 6 P STAINLESS STEEL

2шт.

7706768

DRIVE BUSHING,38.25mm ID x 47.74mm OD x 36.1mm L

5/16-18 x 1-1/4 C

2шт.

7701600

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2-13 x 3-3/4 C

6шт.

704619

SUPPORT

5/16-18 HCLN

2шт.

704288

LOCK NUT

1/2-13 HCLN

4шт.

495-11066

WASHER,5/8", SAE

5/8 NP

2шт.
