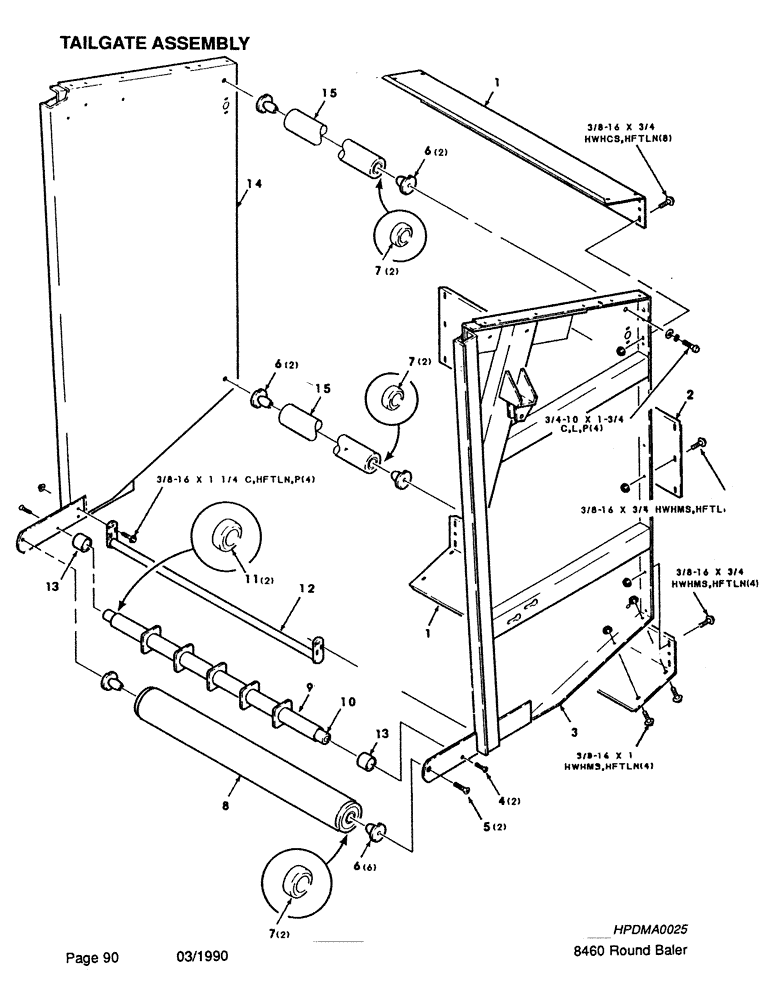

Запчасти Case IH 8460 (090) - TAILGATE ASSEMBLY (16) - BALE EJECTOR

1

700114351

SUPPORT

- tailgate

2шт.

2

700114353

SUPPORT

- center

1шт.

3

700114321

SIDE ASSY.

SIDE - tailgate, left

1шт.

4

771808

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/4"

3/8-16 x 1-1/4 HSFCHCS

2шт.

5

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 x 1-3/4 HSFCHCS

2шт.

6

700100927

HUB

- roller

6шт.

7

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

6шт.

8

700114379

ROLLER ASSY.

ROLLER ASSEMBLY - lower

1шт.

9

700114384

ROLLER ASSY.

ROLLER ASSEMBLY - flanged

1шт.

10

700119682

SHAFT

- roller, flanged

1шт.

11

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - cylindrical, sealed

2шт.

12

700122470

SUPPORT

- tie, lower

1шт.

13

6467674

SPACER

2шт.

14

700114323

SIDE ASSY.

SIDE - tailgate, right

1шт.

15

700116170

ROLLER

- rear

2шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

4шт.

7701196

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

18шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

4шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

26шт.
