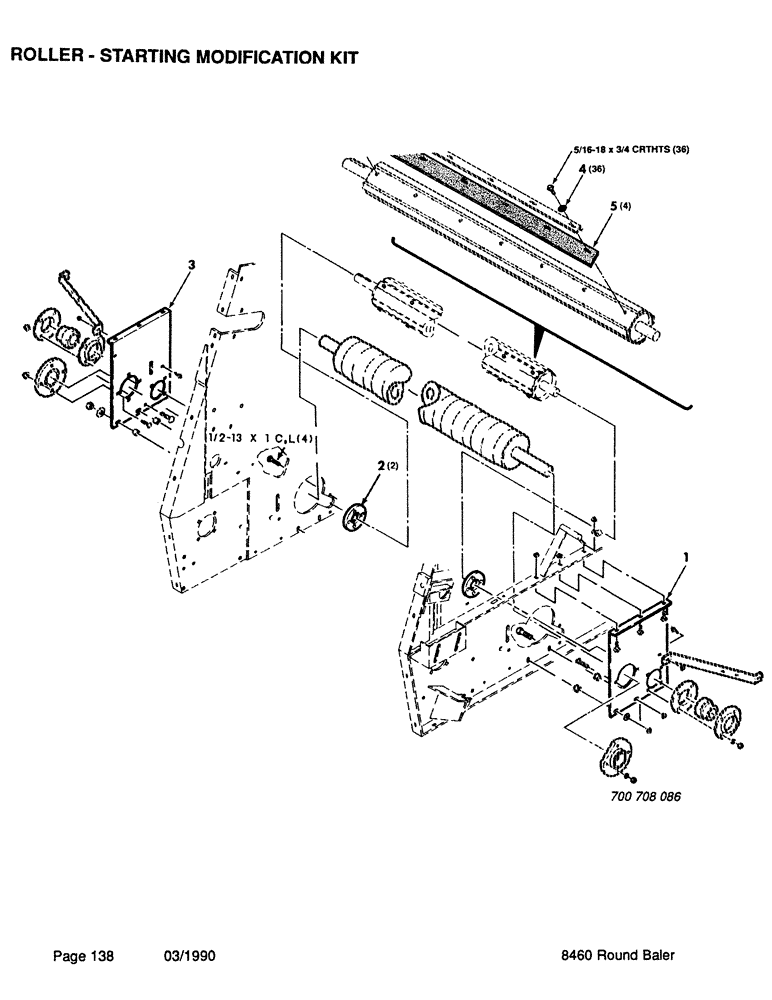

Запчасти Case IH 8460 (138) - ROLLER, STARTING MODIFICATION KIT (14) - BALE CHAMBER

700525140

MODIFICATION

ROLLER - starting mod. kit complete (S.N. CFH0016501 thru CFH0017638)

1шт.

1

700122714

SUPPORT

- roller, left

1шт.

2

700122771

SPACER

RING - grass

2шт.

3

700122715

SUPPORT

- roller, right

1шт.

4

700709141

LOCK WASHER

5/16 WASHER - internal lock

36шт.

5

700710173

FLAP

- rubber

4шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

4шт.

700709140

SELF-TAP SCREW,Pan HD, 5/16" - 18 x 3/4"

5/6-18 x 3/4 CRTHTS

36шт.
