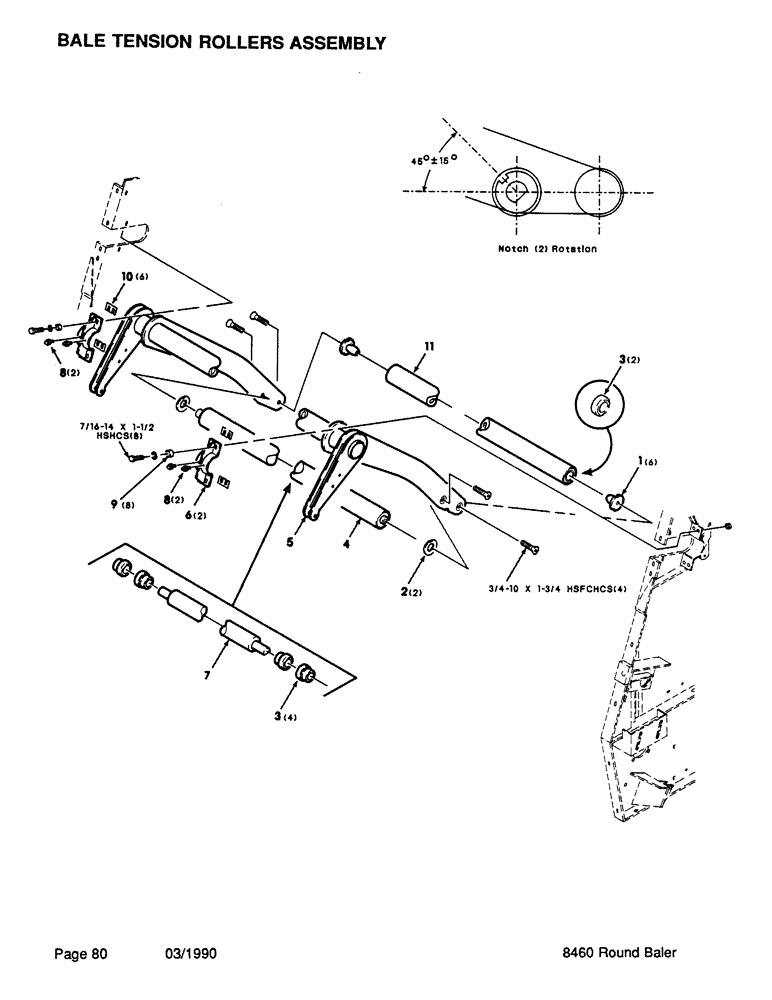

Запчасти Case IH 8460 (080) - BALE TENSION ROLLERS ASSEMBLY (14) - BALE CHAMBER

1

700100927

HUB

- roller

2шт.

2

700118652

WASHER

- wear

2шт.

3

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

6шт.

4

700118645

ROLLER

ASSEMBLY WITH SHAFT

1шт.

5

700114356

ARM/LIFTING DEVICE

ARM - tension, lower

1шт.

6

700107957

CLAMP

- half

2шт.

7

700118648

SHAFT

- roller

1шт.

8

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 x 45 deg. ZERK

4шт.

9

6520233

BUSHING

8шт.

10

700118536

SHIM

6шт.

11

6864607

ROLLER

- idler with bearing

1шт.

61-34424

HEX SOC SCREW,7/16"-14 x 1 1/2"

7/16-14 x 1-1/2 HSHCS

8шт.

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 x 1-3/4 HSFCHCS

4шт.
