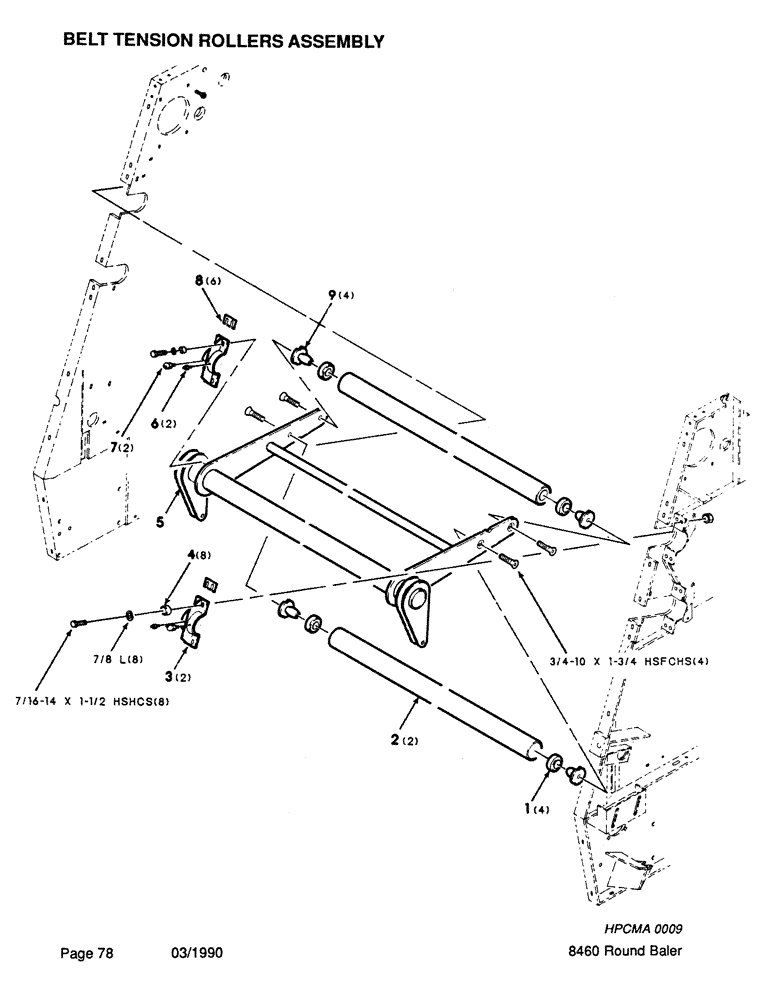

Запчасти Case IH 8460 (078) - BELT TENSION ROLLERS ASSEMBLY (14) - BALE CHAMBER

1

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.

2

6864607

ROLLER

- idler (with bearings)

2шт.

3

700107957

CLAMP

- half

2шт.

4

6520233

BUSHING

8шт.

5

700114367

ARM ASSY.

ARM - tension, upper

1шт.

6

77032

FITTING

1/4-28 ZERK

2шт.

7

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 x 45 deg. ZERK

2шт.

8

700118536

SHIM

6шт.

9

700100927

HUB

- roller

4шт.

772491

LEVER

7/16-14 x 1-1/2 HSHCS

8шт.

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 x 1-3/4 HSFCHCS

4шт.
