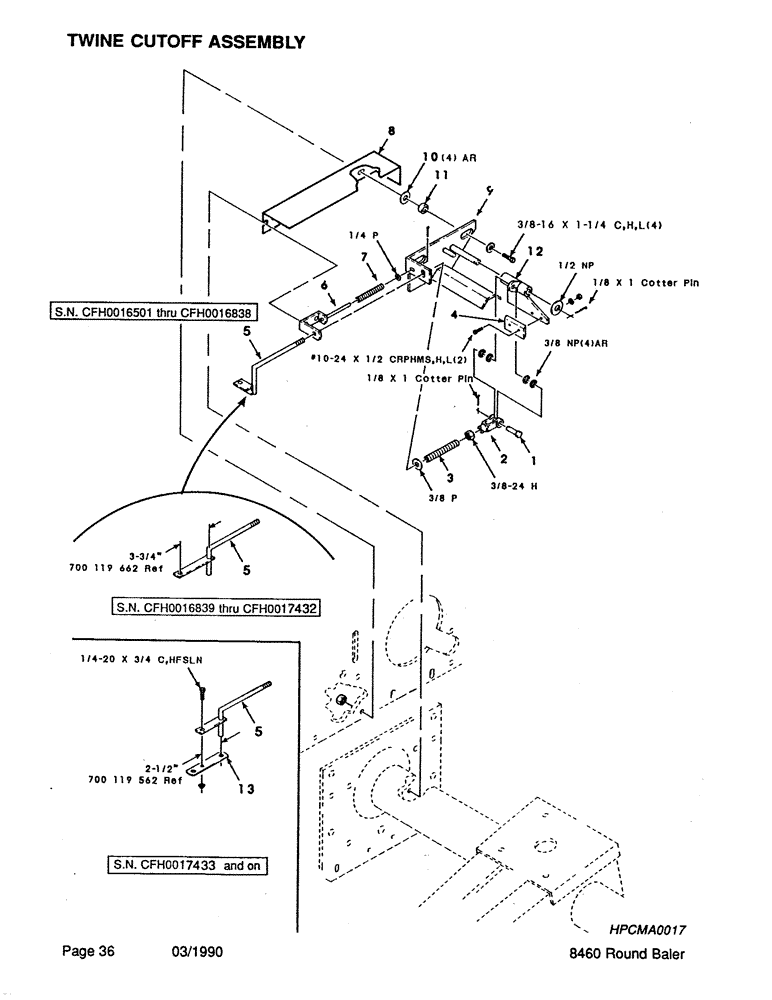

Запчасти Case IH 8460 (036) - TWINE CUTOFF ASSEMBLY (14) - BALE CHAMBER

1

063586

CLEVIS PIN

3/8 x 1-1/8 CLEVIS PIN

1шт.

2

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8-24 thread

1шт.

3

700707199

SPRING

- compression

1шт.

4

700106962

KNIFE

- twine

1шт.

5

700107998

ROD

- handle (S.N. CFH0016501 thru CFH0016838)

1шт.

700119662

ROD

- handle (S.N. CFH0016839 and on) sub. 700122562 rod, 700122554 mounting and 1/4-20 x 3/4 C, HFSLN

2шт.

700122562

ROD

-handle (S.N. CFH0046839 thru CFH0017432)

1шт.

6

700107970

SUPPORT

- rod

1шт.

7

700707200

COMPRESSION SPRING

SPRING - compression

1шт.

8

700107972

SHIELD

- cutoff, twine

1шт.

9

700119127

SUPPORT

- cutoff

1шт.

10

7705734

WASHER

- fender

4шт.

11

6212740

SPACER

2шт.

12

700119129

MOUNTING PARTS

MOUNTING - knife

1шт.

13

700122554

MOUNTING PARTS

STRAP (S.N. CFH0017433 and on) mating part for the 700122562 rod

1шт.

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 C

1шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

4шт.

700700628

SCREW,Cross Pan Hd, #10-24 x 1/2"

NO. 10-24 x 1/2 CRPHMS

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3/8 NP

4шт.

495-11053

WASHER,1/2", SAE

1/2 NP

1шт.
