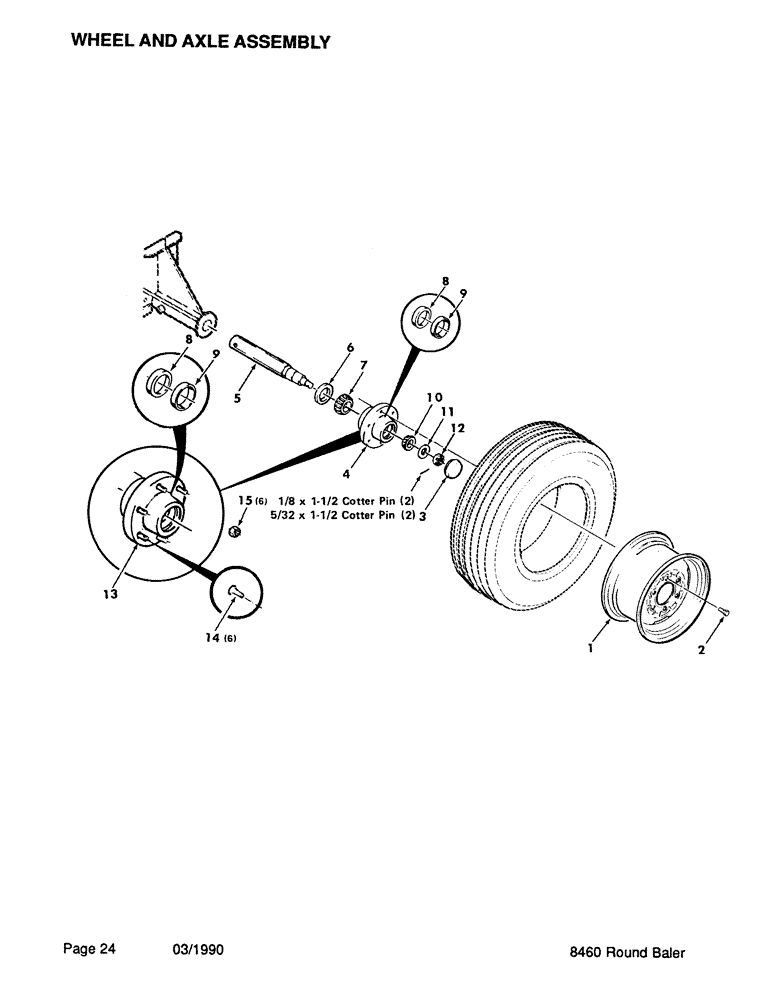

Запчасти Case IH 8460 (024) - WHEEL AND AXLE ASSEMBLY (12) - MAIN FRAME

1

700707924

RIM

WHEEL, 15"

1шт.

700707982

RIM

(STANDARD) WHEEL, 13.5 (high flotation)

1шт.

2

T52730

WHEEL BOLT

9/16-18 x 1-1/8 WHEEL BOLT (S.N. CFH0017432)

6шт.

3

26930

CAP

HUB CAP (see 700709830, item 13)

1шт.

4

826255

HUB

ASSEMBLY (includes cups) see 700709830, item 13 (S.N. CFH0017432)

2шт.

5

700114346

SPINDLE

- axle

1шт.

6

844050

SEAL

- grease

1шт.

7

713537

ROLLER BEARING

BEARING CONE - inner

1шт.

8

663558R1

BEARING CUP

- inner

1шт.

9

711242

BEARING CUP

- outer

1шт.

10

711507

ROLLER BEARING,31.77 mm ID x 16.764 mm

BEARING CONE - outer

1шт.

11

26971

WASHER

1шт.

12

7704208

SLOTTED NUT

3/4-16 SLOTTED HEX NUT (S.N. CFH0017433 and on)

1шт.

13

700709830

HUB

ASSEMBLY (hub will retrofit on all) (includes cups and wheel bolts) (S.N. CFH0017433 and on)

1шт.

14

826370

BOLT,Ribbed Nk, 9/16" - 18 x 2.12"

9/16-18 RUBBED NECK WHEEL BOLT

6шт.

15

826313

NUT

9/16-18 WHEEL NUT

6шт.
