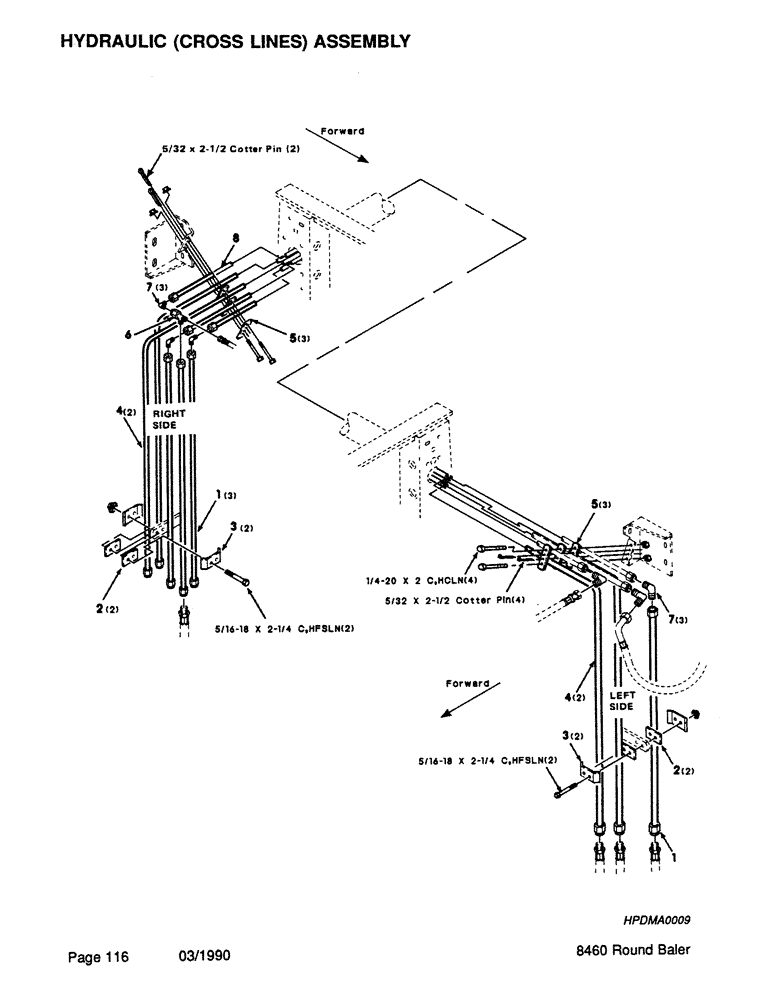

Запчасти Case IH 8460 (116) - HYDRAULIC, CROSS LINES, ASSEMBLY (07) - HYDRAULICS

1

700707268

LINE

- hydraulic

4шт.

2

700116114

SHIM

4шт.

3

700116034

CLAMP

- line

4шт.

4

700707434

LINE

- hydraulic

4шт.

5

700116115

STRAP

6шт.

6

700701550

3 WAY CONNECTION

TEE WITH SWIVEL

1шт.

7

791038

ELBOW

90 deg. ELBOW

6шт.

8

700707435

LINE

- hydraulic

1шт.

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 x 2 C

4шт.

7771744

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 x 2-1/4 c

4шт.

704783

SHIM,.020" Thk

1/4-20 HCLN

4шт.
