(114) - HYDRAULIC ASSEMBLY, RIGHT

Запчасти Case IH 8460 (114) - HYDRAULIC ASSEMBLY, RIGHT (07) - HYDRAULICS

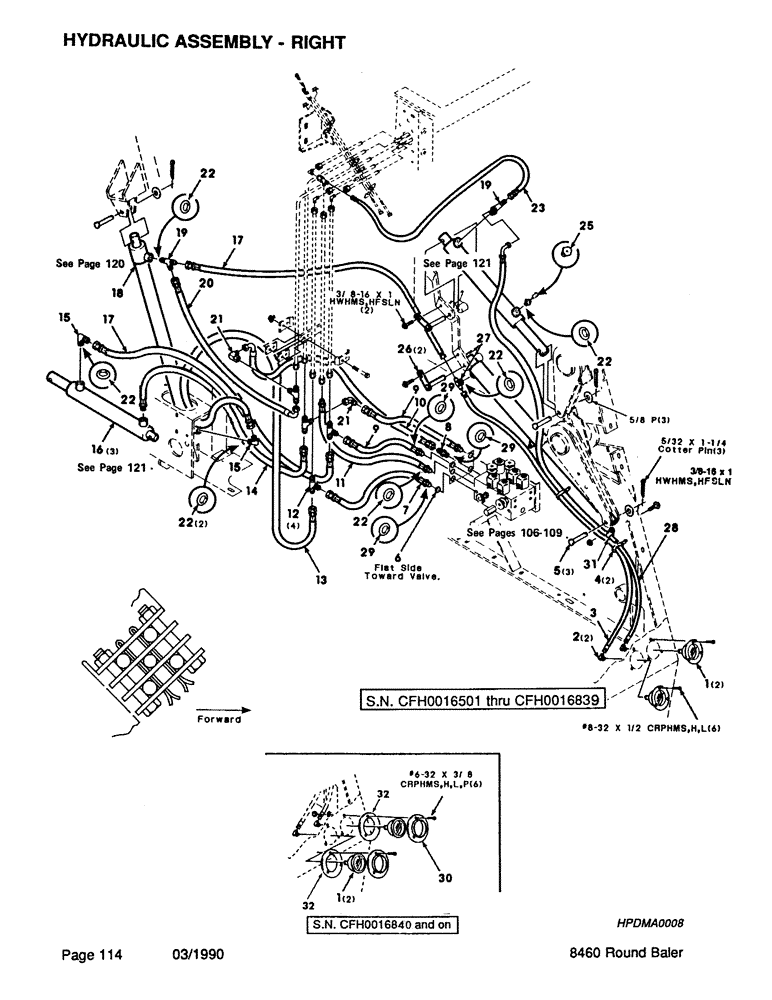

Схема запчастей Case IH 8460 - (114) - HYDRAULIC ASSEMBLY, RIGHT (07) - HYDRAULICS
26
32
22
5
13
19
8
17
22
25
20
22
11
31
7
9
29
16
10
29
3
4
14
15
22
18
27
9
15
17
1
12
2
22
32
1
21
30
21
6
22
29
19
23
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707986

GAUGE

(S.N. CFH0016501 thru CFH0016839)

2шт.

700709290

GAUGE

(S.N. CFH0016840 and on)

2шт.

2

8046666

FITTING

90 deg. ELBOW

2шт.

3

1714633

HOSE ASSY.

HOSE - hydraulic

1шт.

4

722470

MOUNTING CLIP

TIE - cable

2шт.

5

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 x 2-1/2 CLEVIS PIN

3шт.

6

700707872

ORIFICE

1шт.

7

700707601

HOSE

- hydraulic

1шт.

8

846337

ROD, CONNECTING

CONNECTOR WITH O-RING

1шт.

9

700707394

HOSE

- hydraulic

2шт.

10

700707395

HOSE

- hydraulic

1шт.

11

700707399

HOSE

- hydraulic

1шт.

12

700707288

TEE

4шт.

13

8742447

HOSE

- hydraulic

1шт.

14

700707276

HOSE

- hydraulic

1шт.

15

7746555

ELBOW

90 deg. ELBOW

2шт.

16

700707262

CYLINDER

- hydraulic, ejector and tensioner

3шт.

17

700707386

HOSE

- hydraulic

2шт.

18

700707261

CYLINDER

- hydraulic, tailgate

1шт.

19

8046658

TEE

WITH O-RING

2шт.

20

700707285

HOSE

- hydraulic

1шт.

21

846360

ELBOW

90 deg. ELBOW WITH SWIVEL

2шт.

22

738468

O-RING

8шт.

23

8042715

HYDRAULIC HOSE,9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

1шт.

24

CONNECTOR WITH O-RING (connector is not used with the 700709959 breather)

2шт.

25

700709959

BREATHER

2шт.

26

700118823

PIN

- cylinder

2шт.

27

8746455

FITTING

TEE WITH O-RING

1шт.

28

700707385

HOSE

- hydraulic

1шт.

29

279706

O-RING

4шт.

30

700709292

FLANGE

RING - clamp, gauge (S.N. CFH0016839 and on)

2шт.

31

7892737

CLAMP, hose

1шт.

32

700119686

OIL SEAL

RING - adapter (S.N. CFH0016839 thru CFH0016840)

2шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

2шт.
