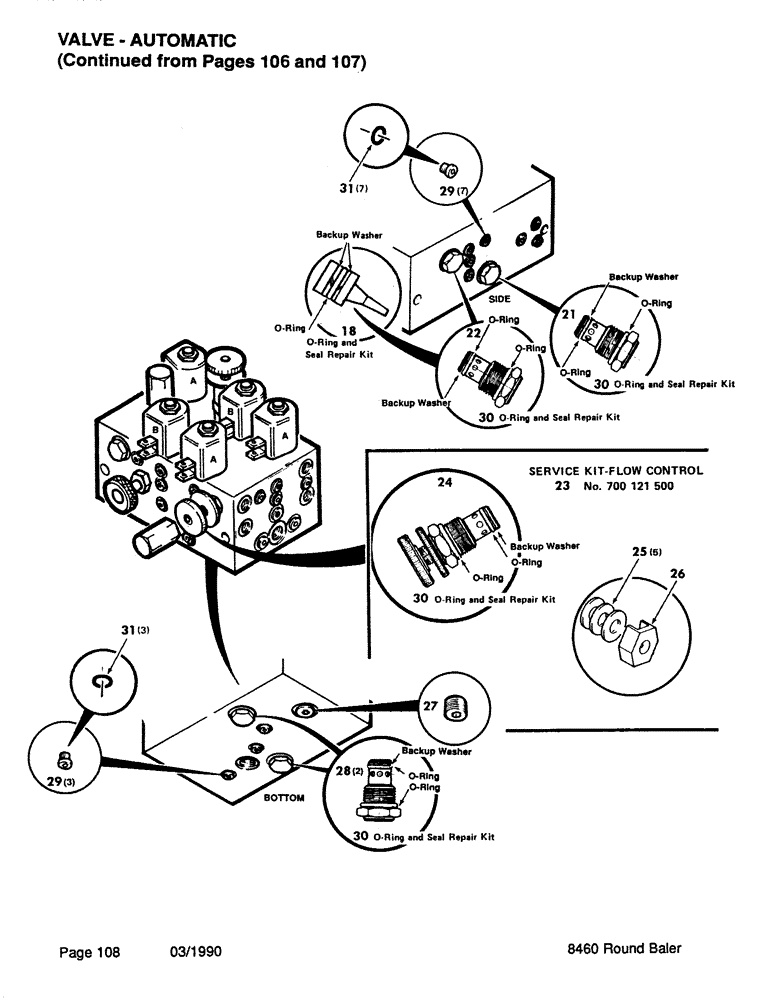

Запчасти Case IH 8460 (108) - VALVE, AUTOMATIC, CONTINUED FROM 106 (07) - HYDRAULICS

700707444

VALVE

- automatic, complete (continued from page 106)

1шт.

21

700707833

VALVE, CHECK

VALVE - check, poppet (15 PSI spring)

1шт.

22

700707832

VALVE PRESSURE RELIE

VALVE - check, ball (5 PSI spring)

1шт.

23

700121500

KIT

SERVICE KIT - flow control

1шт.

24

700709569

VALVE

FLOW CONTROL - knob adjustment (S.N. CFH0016839 and on) Used with orifice in the threader cylinder

1шт.

25

700118716

WASHER

- special

3шт.

26

700709533

ORIFICE

(.038)

1шт.

27

700706604

PLUG

(8 SAE)

1шт.

28

700707831

VALVE

- check, poppet (15 PSI spring)

1шт.

29

700706603

PLUG

(2 SAE)

10шт.

30

700706154

SEAL KIT

O-RING AND SEAL REPAIR KIT (valve and poppet)

4шт.

31

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

10шт.
