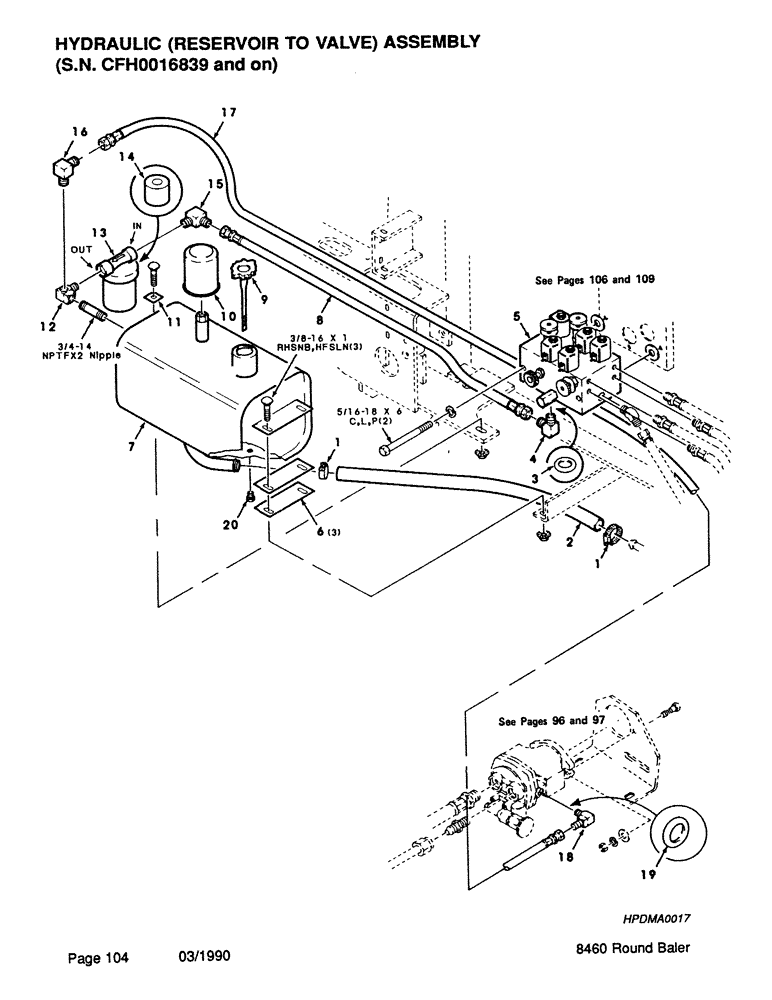

Запчасти Case IH 8460 (104) - HYDRAULIC, RESERVOIR TO VALVE, ASSEMBLY, SERIAL NUMBER CFH0016839 AND ON (07) - HYDRAULICS

1

7720055

HOSE CLAMP

CLAMP - hose

2шт.

2

7796782

HOSE

- hydraulic

1шт.

3

7037781

O-RING

1шт.

4

846329

ELBOW

90 deg. ELBOW WITH O-RING

1шт.

5

700707444

VALVE

- auto

1шт.

6

6525877

CLAMP

STRAP - reservoir

3шт.

7

700708071

RESERVOIR ASSY.

RESERVOIR - oil

1шт.

8

895482

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 30R2, SAE J517, SAE J516, SAE J343

12.70 mm ID x 431.80 mm, SAE 30R2, SAE J517, SAE J516, SAE J343

1шт.

9

700708076

FILLER CAP

CAP - filler

1шт.

10

7825516

FILTER

- breather

1шт.

11

700116124

LUG

1шт.

12

700119134

ELBOW

90 deg. ELBOW - special

1шт.

13

742643

FILTER

ASSEMBLY

1шт.

14

733592

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

15

846246

ELBOW

90 deg. ELBOW - male

1шт.

16

846170

ELBOW

90 deg. ELBOW - male

1шт.

17

700708996

HYDRAULIC HOSE,9.65 mm ID x 2025.00 mm, SAE 100R1

9.65 mm ID x 2025.00 mm, SAE 100R1

1шт.

18

7746555

ELBOW

90 deg. ELBOW WITH O-RING

1шт.

19

738468

O-RING

1шт.

20

746586

PLUG

1/2-14 NPTF RECESSED SOCKET HEAD PIPE PLUG

1шт.

873034

BOLT

5/16-18 x 6 C

2шт.

700047

BOLT

3/8-16 x 1 RHSNB

3шт.
