(100) - HYDRAULIC, RESERVIOR TO VALVE, ASSEMBLY, SERIAL NUMBER CFH0016501 THROUGH CFH0016838

Запчасти Case IH 8460 (100) - HYDRAULIC, RESERVIOR TO VALVE, ASSEMBLY, SERIAL NUMBER CFH0016501 THROUGH CFH0016838 (07) - HYDRAULICS

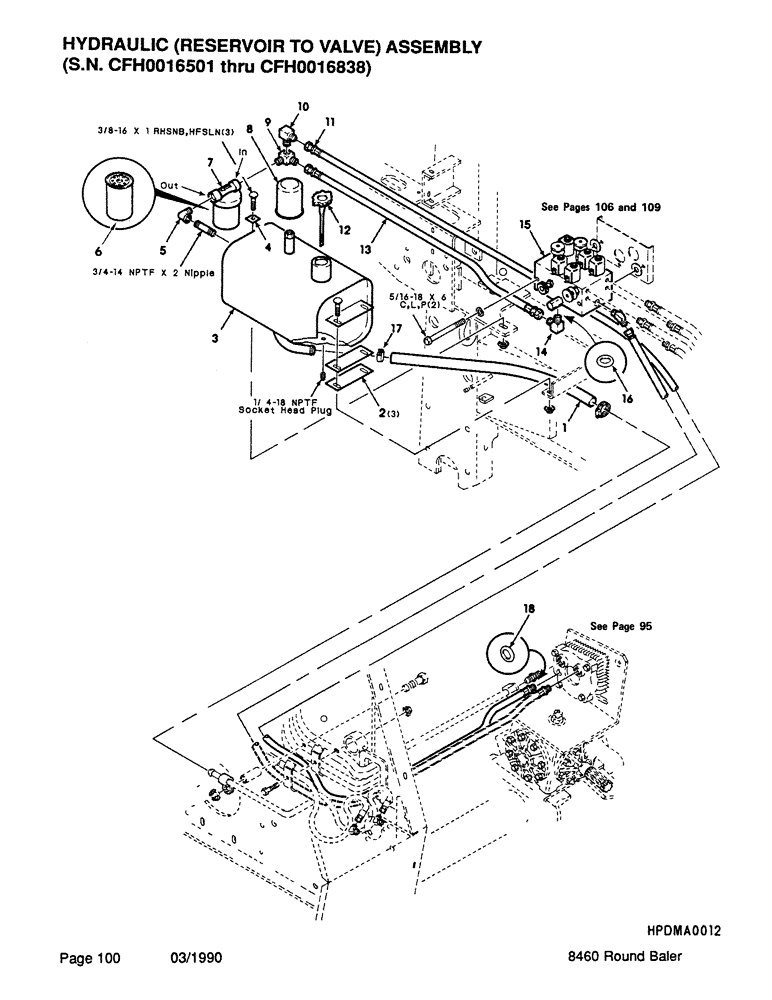

Схема запчастей Case IH 8460 - (100) - HYDRAULIC, RESERVIOR TO VALVE, ASSEMBLY, SERIAL NUMBER CFH0016501 THROUGH CFH0016838 (07) - HYDRAULICS
1
4
6
14
10
11
9
7
15
16
5
8
12
13
2
18
17
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7796782

HOSE

- hydraulic

1шт.

2

6525877

CLAMP

STRAP - reservoir

3шт.

3

700708071

RESERVOIR ASSY.

RESERVOIR - oil

1шт.

4

700116124

LUG

1шт.

5

7846298

ELBOW

3/4 NPTF x 90 deg. ELBOW

1шт.

6

733592

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

7

742643

FILTER

ASSEMBLY

1шт.

8

7825516

FILTER

- breather

1шт.

9

700116154

FITTING

- special

1шт.

10

846170

ELBOW

90 deg. ELBOW

1шт.

11

700707392

HOSE

- hydraulic with o-ring

1шт.

12

700708076

FILLER CAP

CAP - filler

1шт.

13

895482

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 30R2, SAE J517, SAE J516, SAE J343

12.70 mm ID x 431.80 mm, SAE 30R2, SAE J517, SAE J516, SAE J343

1шт.

14

846329

ELBOW

90 deg. ELBOW WITH O-RING

1шт.

15

700707444

VALVE

- auto

1шт.

16

279706

O-RING

1шт.

17

7720055

HOSE CLAMP

CLAMP - hose

2шт.

18

7037781

O-RING

1шт.

873034

BOLT

5/16-18 x 6 C

2шт.

700047

BOLT

3/8-16 x 1 RHSNB

3шт.
