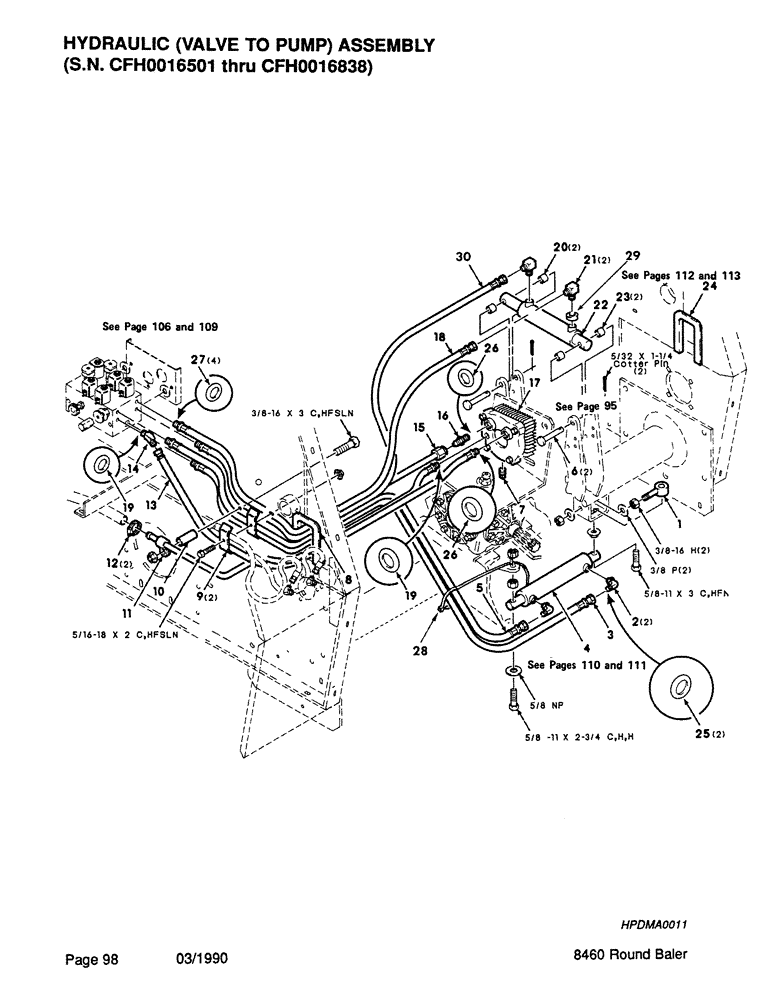

Запчасти Case IH 8460 (098) - HYDRAULIC, VALVE TO PUMP, ASSEMBLY, SERIAL NUMBER CFH0016501 THROUGH CFH0016838 (07) - HYDRAULICS

1

700116206

SPECIAL BOLT

DRAWBOLT

1шт.

2

7746555

ELBOW

90 deg. ELBOW WITH O-RING

2шт.

3

700707390

HYDRAULIC HOSE,6.35 mm ID x 2475.00 mm, SAE 100R1

6.35 mm ID x 2475.00 mm, SAE 100R1

1шт.

4

700707410

CYLINDER

- hydraulic, threader (S.N. CFH0016501 thru CFH0017432)

1шт.

700709416

CYLINDER

- hydraulic, threader (S.N. CFH0017433 and on)

1шт.

5

700707389

HYDRAULIC HOSE,6.35 mm ID x 2275.00 mm, SAE 100R1

6.35 mm ID x 2275.00 mm, SAE 100R1

1шт.

6

863498

CLEVIS PIN

5/8 x 3-1/2 CLEVIS PIN (S.N. CFH0016501 thru CFH0016838)

2шт.

863498

CLEVIS PIN

5/8 x 3-1/2 CLEVIS PIN (S.N. CFH0016839 and on)

2шт.

7

7030695

PLUG

- pump

1шт.

8

700117735

ADHESIVE STRIP

TRIM - edge

1шт.

9

700116123

CLAMP

2шт.

10

6501076

SPACER

1шт.

11

756486

CLAMP

- line

1шт.

12

7720055

HOSE CLAMP

CLAMP - hose

1шт.

13

700707396

HOSE ASSY.

HOSE - hydraulic with o-ring

1шт.

14

7846801

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

45 deg. ELBOW WITH O-RING

1шт.

15

700707384

TUBE ASSY.,25.4 mm OD, 850, 400 mm Length

LINE - hydraulic

1шт.

16

7746753

ADAPTER

FLARED CONNECTOR WITH O-RING

1шт.

17

700706367

HYDRAULIC PUMP

PUMP - radial piston

1шт.

18

700707387

HYDRAULIC HOSE,6.35 mm ID x 1825.00 mm, SAE 100R1

6.35 mm ID x 1825.00 mm, SAE 100R1

2шт.

19

279706

O-RING

2шт.

20

312801

SPACER

2шт.

21

846170

ELBOW

90 deg. ELBOW

2шт.

22

7075625

CYLINDER

- hydraulic, pickup

1шт.

23

254-409

SPACER

2шт.

24

700117736

ADHESIVE STRIP

TRIM - edge

1шт.

25

738468

O-RING

2шт.

26

738484

O-RING

2шт.

27

7040397

O-RING

4шт.

28

7899966

STRAP

TIE - cable

1шт.

29

700119118

SPACER

1шт.

30

700708944

HYDRAULIC HOSE,6.35 mm ID x 1875.00 mm, SAE 100R1

6.35 mm ID x 1875.00 mm, SAE 100R1

1шт.

7703507

DECAL,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 C

1шт.

7704205

HYDRAULIC VALVE

3/8-16 x 3 C

1шт.

703561

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 x 2-3/4 C

1шт.

7701683

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 C

1шт.

705632

WASHER

5/8 NP

1шт.
