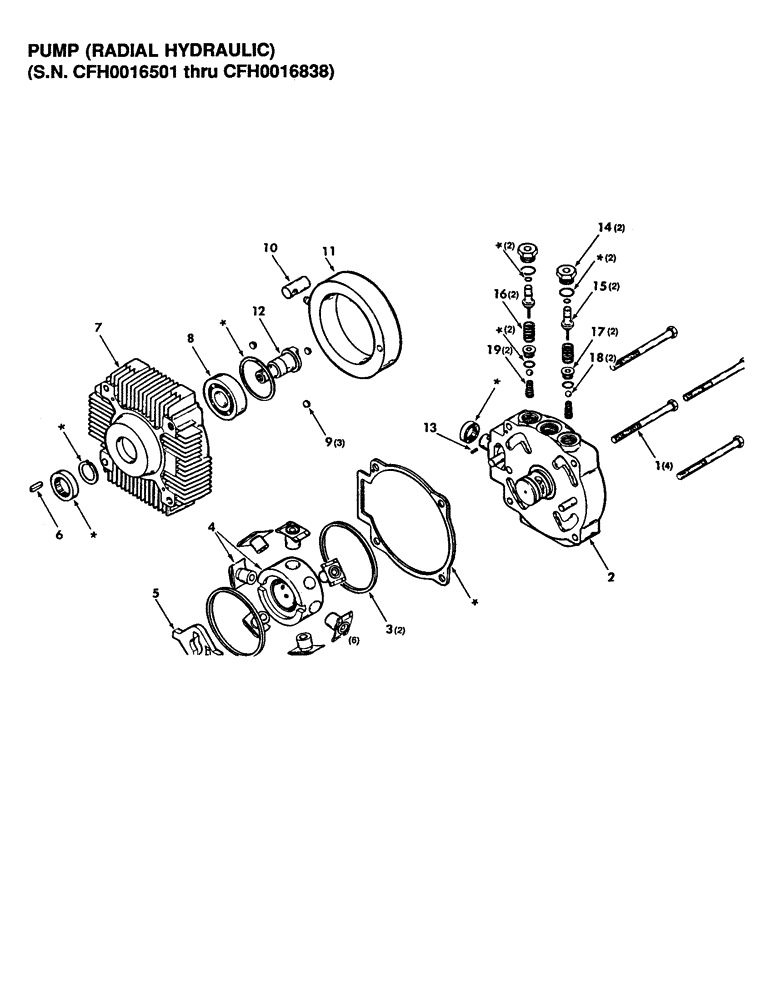

Запчасти Case IH 8460 (095) - PUMP, RADIAL HYDRAULIC, SERIAL NUMBER CFH0016501 THROUGH CFH0016838 (07) - HYDRAULICS

700706367

HYDRAULIC PUMP

PUMP - radial hydraulic, complete (S.N. CFH0016501 thru CFH0016838)

1шт.

700120769

KIT

PUMP CONVERSION KIT (S.N. CFH0016839 and on)

1шт.

1

HEX CAP SCREW

4шт.

2

BACK PLATE ASSEMBLY

1шт.

3

SHOE - retainer

2шт.

4

ROTATING KIT

1шт.

5

PLATE - drive

1шт.

6

700706466

KEY

- radius E

1шт.

7

HOUSING - pump

1шт.

8

BALL BEARING

1шт.

9

STABILIZER - cam ring

3шт.

10

CONNECTOR - control arm

1шт.

11

CAM RING - pump

1шт.

12

SHAFT - drive

1шт.

13

700706559

ROLL PIN

1шт.

14

PLUG WITH O-RING

2шт.

15

PLUNGER ASSEMBLY

2шт.

16

SPRING - compression

2шт.

17

PLUG - check, assembly

2шт.

17

PLUG - check, assembly

2шт.

18

BALL

2шт.

19

SPRING - compression

2шт.

700706570

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk, for pumps marked 77200DAA.

1шт.

700708523

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk, for pumps marked 77200DAB or 77200DAC.

1шт.
