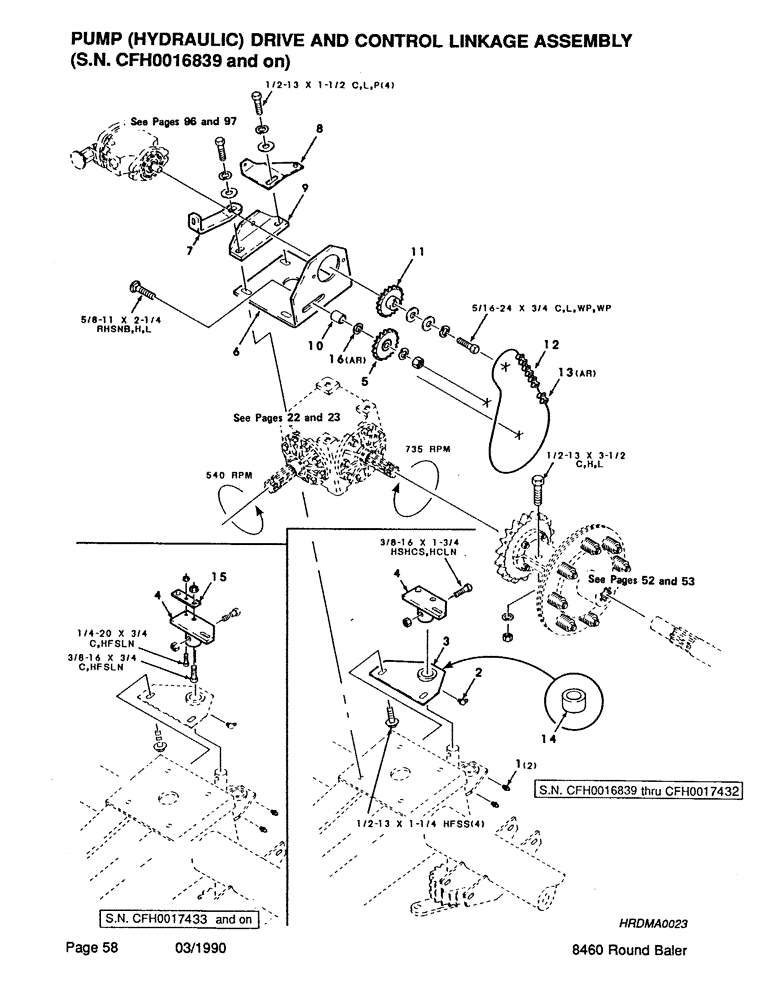

Запчасти Case IH 8460 (058) - PUMP, HYDRAULIC, DRIVE AND CONTROL LINKAGE ASSEMBLY, SERIAL NUMBER CFH0016839 AND ON (07) - HYDRAULICS

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 x 90 deg. ZERK

1шт.

3

700116177

SUPPORT

plate

1шт.

4

700116107

PLATE

(S.N. CFH0016839 thru CFH0017432)

1шт.

700122565

PLATE

(S.N. CFH 0017433 and on) mating part for 700122555 mounting - actuator

1шт.

5

47977

SPROCKET ASSY.

SPROCKET - idler, 40-P

1шт.

6

700119133

MOUNTING PARTS

MOUNT - pump

1шт.

7

700117086

STRAP

1шт.

8

700116094

MOUNTING PARTS

MOUNT - switch

1шт.

9

700119717

MOUNTING PARTS

MOUNTING - switch

1шт.

10

700118822

SPACER

1шт.

11

700708998

SPROCKET ASSY.

SPROCKET - pump 40-P, 17 tooth

1шт.

12

700707710

CHAIN (AG)

R/C 40 roller chain (with o-rings)

1шт.

13

700708338

LINK

R/C 40 connector link (with o-rings)

1шт.

14

740512

BUSHING

- oilite

1шт.

15

700122555

MOUNTING PARTS

MOUNTING - actuator (S.N. CFH0017433 and on) mating part for the 700122565 plate

1шт.

16

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 x 18 GAUGE MACHINERY BUSHING

1шт.

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 C

1шт.

7773914

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-24 x 3/4 C

1шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C

1шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

4шт.

7870173

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 RHSNB

1шт.

7771363

BOLT,Hex Flange, 1/2" - 13 x 1 1/4", SPL

1/2-13 x 1-1/4 HFSS

4шт.

88902

NUT,3/8"-16

3/8-16 HCLN

1шт.

73213

SCREW

3/8-16 x 1-3/4 HSHCS

1шт.

71142

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 x 2 HWHMS

1шт.
