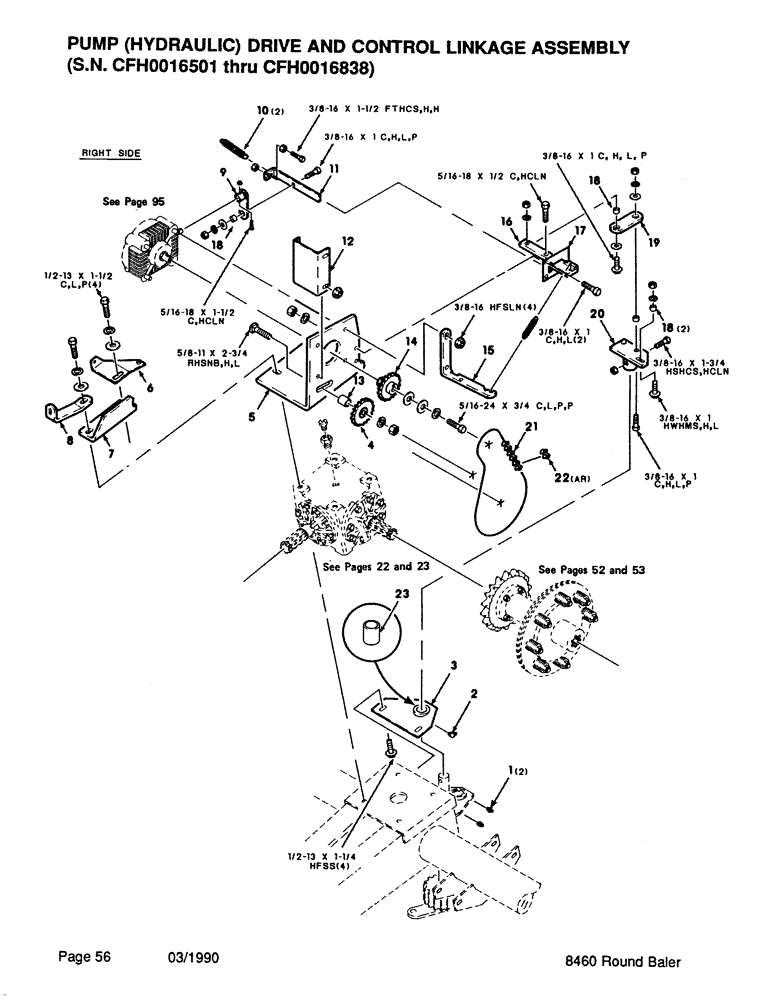

Запчасти Case IH 8460 (056) - PUMP, HYDRAULIC, DRIVE AND CONTROL LINKAGE ASSEMBLY, SERIAL NUMBER CFH0016501 THROUGH CFH0016838) (07) - HYDRAULICS

1

7016

1/4-28 ZERK

2шт.

2

77057

1/4-28 x 90 deg. ZERK

1шт.

3

700116177

SUPPORT

plate

1шт.

4

47977

SPROCKET ASSY.

SPROCKET - idler, 40-P

1шт.

5

700116091

MOUNTING PARTS

MOUNT - pump

1шт.

6

700116094

MOUNTING PARTS

MOUNT - switch

1шт.

7

700116093

STOP

1шт.

8

700117086

STRAP

1шт.

9

700116096

LEVER ASSY.

LEVER

1шт.

10

700707432

SPRING

2шт.

11

700116098

LATCH

1шт.

12

700117105

SHIELD

1шт.

13

6143358

BUSHING

SPACER

1шт.

14

700116190

SPROCKET ASSY.

SPROCKET - pump, 40-P, 15-tooth

1шт.

15

700116092

SUPPORT

- spring

1шт.

16

700116101

LATCH

1шт.

17

700116100

PLATE

1шт.

18

700116106

SPACER

4шт.

19

700116105

LINK

1шт.

20

700116107

PLATE

1шт.

21

700707710

CHAIN (AG)

R/C 40 ROLLER CHAIN (with o-rings)

1шт.

22

700708338

LINK

R/C 40 connector link (with o-rings)

1шт.

23

740512

BUSHING

- oilite

1шт.

7773914

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-24 x 3/4 C

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 x 1/2 C

1шт.

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 x 1-1/2 C

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

5шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

4шт.

873083

SCREW

3/8-16 x 1-1/2 FTHCS

4шт.

7870199

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 x 2-3/4 RHSNB

1шт.

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8-16 x 1-3/4 HSHCS

1шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

1шт.

7771363

BOLT,Hex Flange, 1/2" - 13 x 1 1/4", SPL

1/2-13 x 1-1/4 HFSS

4шт.

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

2шт.

704635

NUT

3/8-16 HCLN

1шт.
