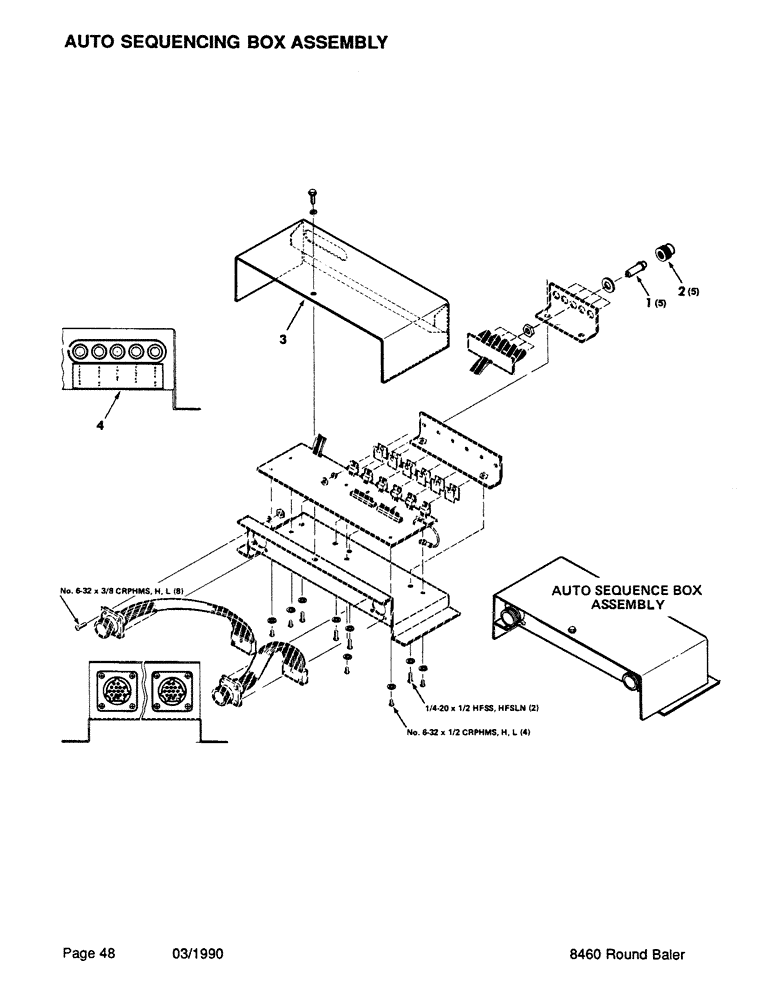

Запчасти Case IH 8460 (048) - AUTO SEQUENCING BOX ASSEMBLY (06) - ELECTRICAL

700707462

TERMINAL BOX

AUTO SEQUENCE BOX ASSEMBLY (S.N. CFH0016501 thru CFH0016838)

1шт.

700709152

TERMINAL BOX

AUTO SEQUENCE BOX ASSEMLBY (S.N. CFH0019839 and on)

1шт.

Ref part number 700709152-The serial number break here should be 16839 and up.

1шт.

1

8021198

LAMP

5шт.

2

700708670

CAP

- lens

5шт.

3

700116143

LID

ASSEMBLY

1шт.

4

700706190

DECAL

- indicator lights

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 x 1/2 C

1шт.

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1/4-20 x 1/2 HFSS

2шт.
