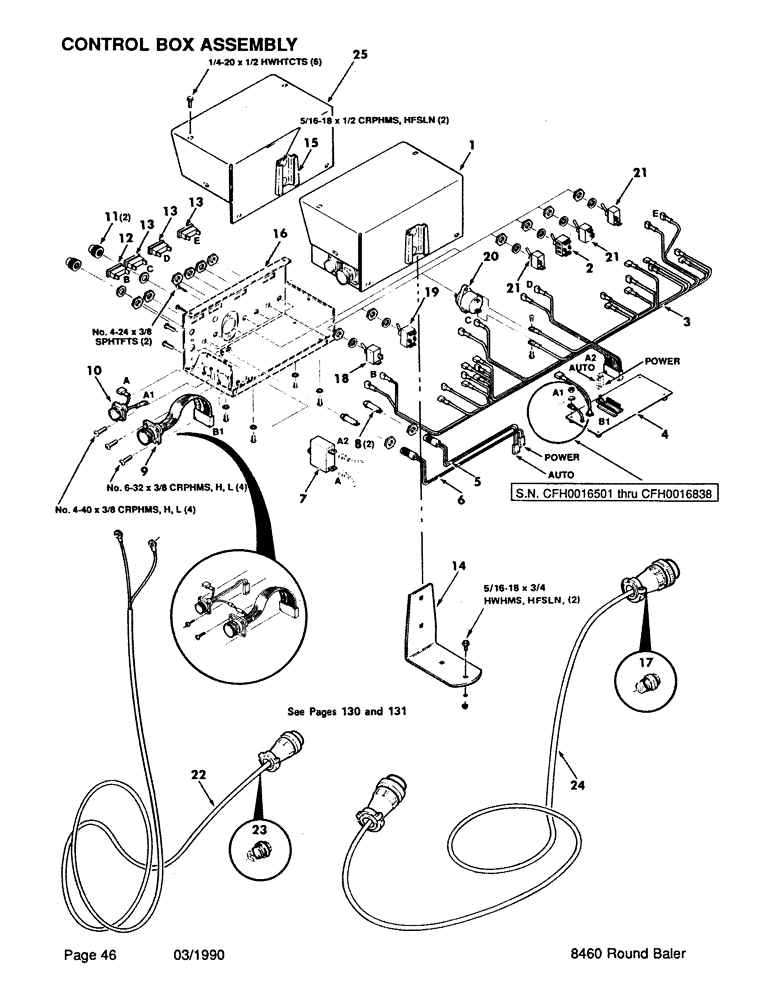

Запчасти Case IH 8460 (046) - CONTROL BOX ASSEMBLY (06) - ELECTRICAL

1

700707461

TRANSFER BOX

CONTROL BOX ASSEMBLY COMPLETE (S.N. CFH0016501 thru CFH0016838)

1шт.

700708972

CONTROL

BOX ASSEMBLY COMPLETE (S.N. CFH0016839 and on)

1шт.

2

700707451

SWITCH

- toggle (S.N. CFH0016501 thru CFH0016838)

1шт.

700709399

SWITCH

- toggle (S.N. CFH0016839 and on)

1шт.

3

700708675

HARNESS

1шт.

4

700708676

BOARD

- PC

1шт.

700709892

BOARD

- PC

1шт.

5

700708674

HARNESS

- auto light

1шт.

6

700708673

HARNESS

- power light

1шт.

7

700707393

SWITCH

- breaker

1шт.

8

8021198

LAMP

2шт.

9

700708671

HARNESS

ASSEMBLY

1шт.

10

700708672

HARNESS

- power

1шт.

11

700708670

CAP

LENS

2шт.

12

700707458

INDICATOR

LIGHT - green

1шт.

13

700707459

INDICATOR

LIGHT - amber

3шт.

14

6866081

BRACKET

1шт.

Ref #4 (700708676) is for the ten terminal.

1шт.

15

A59457

BRACKET

SOCKET

1шт.

16

700707424

DECAL

- control box (S.N. CFH0016501 thru CFH0016838)

1шт.

700708973

DECAL

- control box (S.N. CFH0016839 and on)

1шт.

17

700707819

LOCKING RING

RING KIT - coupling

1шт.

18

700707449

SWITCH

- toggle

1шт.

Ref #18, Part number 700707817 is incorrectly illustrated. See 8430 Baler, catalog 8-6932 page 4-10.

1шт.

19

700707450

SWITCH

- toggle

1шт.

20

700703984

INDICATOR

- audio (horn)

1шт.

21

700707452

SWITCH

- toggle

3шт.

22

700707598

WIRE HARNESS

CABLE - electrical

1шт.

23

700707817

RING

KIT - coupling

1шт.

24

700707599

CABLE

- electrical

1шт.

25

700116147

COVER

(without socket)

1шт.

703066

SCREW

5/16-18 x 3/4 HWHMS

2шт.

(700709892) is for the eleven terminal.

1шт.

SMA 8/12/98

1шт.
