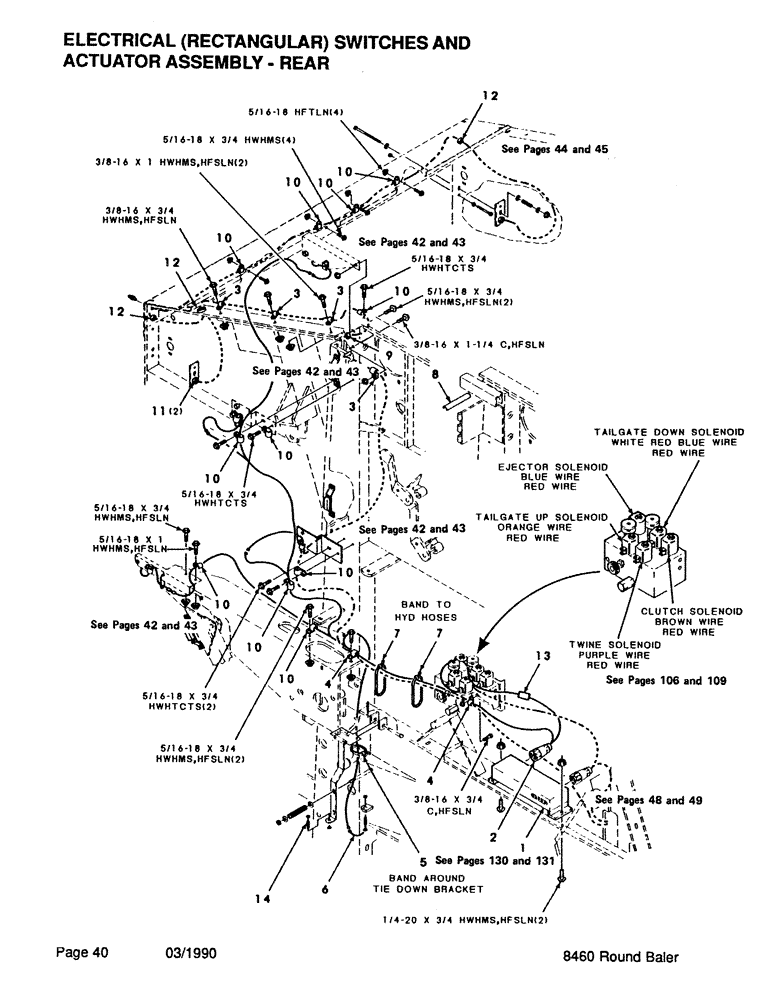

Запчасти Case IH 8460 (040) - ELECTRICAL, RECTANGULAR, SWITCH AND ACTUATOR ASSEMBLY, REAR (06) - ELECTRICAL

1

700709152

TERMINAL BOX

AUTO SEQUENCE BOX ASSEMBLY

1шт.

2

700708763

HARNESS

- wiring

1шт.

3

751487

CLAMP

- wiring

4шт.

4

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

- wiring

2шт.

5

722470

MOUNTING CLIP

CABLE TIE

1шт.

6

700119161

SWITCH

SENSOR "A"

1шт.

7

529070

CABLE TIE,368.3mm L

CABLE TIE

2шт.

8

700120657

ORNAMENTAL STRIP

GROMMET - rubber

1шт.

9

700708340

GROMMET

- rubber

1шт.

10

700708090

CLAMP

- wiring

11шт.

11

8025637

SWITCH

2шт.

12

7827983

GROMMET

- rubber

3шт.

13

700705710

FUSE

(3 amp)

1шт.

14

700707354

CONNECTION,ELECTRIC

ACTUATOR - round

1шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 1 C

1шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

1шт.

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

9шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

1шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

1шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

2шт.

701953

SELF-TAP SCREW

5/16-18 x 3/4 HWHTCTS

5шт.

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN

4шт.
