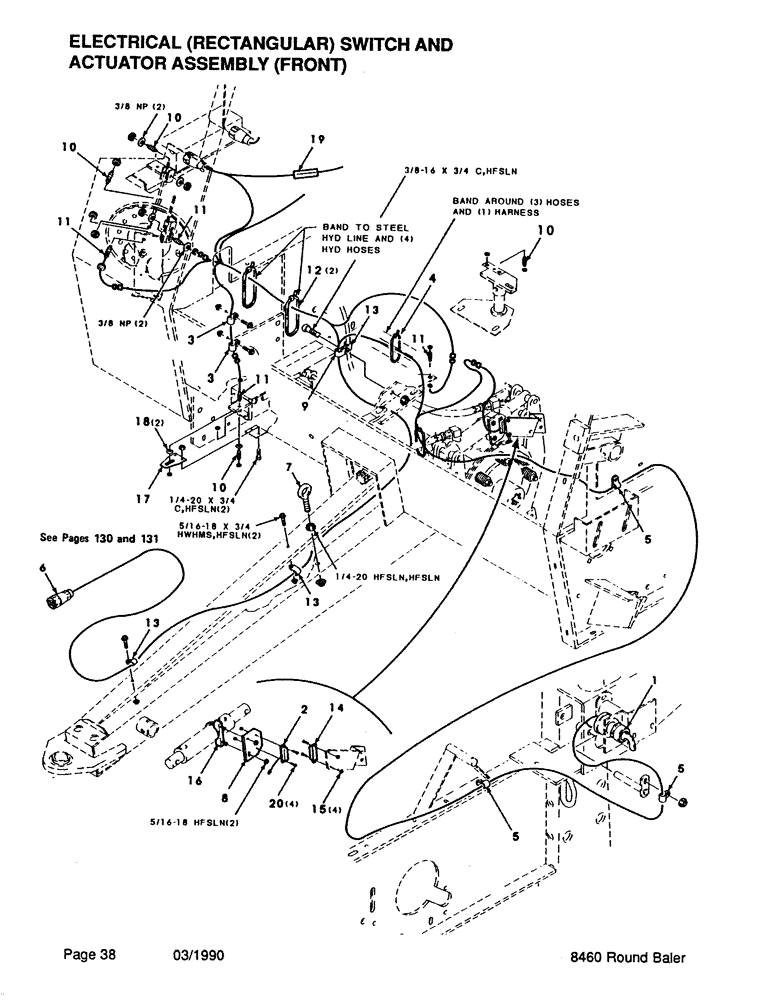

Запчасти Case IH 8460 (038) - ELECTRICAL, RECTANGULAR, SWITCH AND ACTUATOR ASSEMBLY, FRONT (06) - ELECTRICAL

1

700707326

SWITCH

1шт.

2

700710208

ROTARY SWITCH

SWITCH - N.O.

1шт.

3

700708090

CLAMP

- line

2шт.

4

722470

MOUNTING CLIP

TIE - cable

2шт.

5

751487

CLAMP

- line

3шт.

6

700708762

HARNESS

- wire

1шт.

7

866061

EYEBOLT

1шт.

8

700122551

MOUNTING PARTS

SUPPORT - switch

1шт.

9

7898737

CLAMP

- line

1шт.

10

700710211

ACTUATOR

4шт.

11

700119161

SWITCH

SENSOR "A"

4шт.

12

7021728

STRAP

TIE - cable

2шт.

13

755751

ROD

- line

3шт.

14

700709996

SWITCH

MAGNET

1шт.

15

700710189

LOCK NUT

NO. 6-32 LHSN STAINLESS STEEL

4шт.

16

720664

CLAMP

ASSEMBLY

1шт.

17

700122552

PLATE

1шт.

18

700710190

WASHER

3/8 NP STAINLESS STEEL

2шт.

19

700705710

FUSE

(10 amp)

1шт.

20

700710188

SCREW

NO. 6-32 x 3/4 CRPHMS STAINLESS STEEL

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 C

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.
