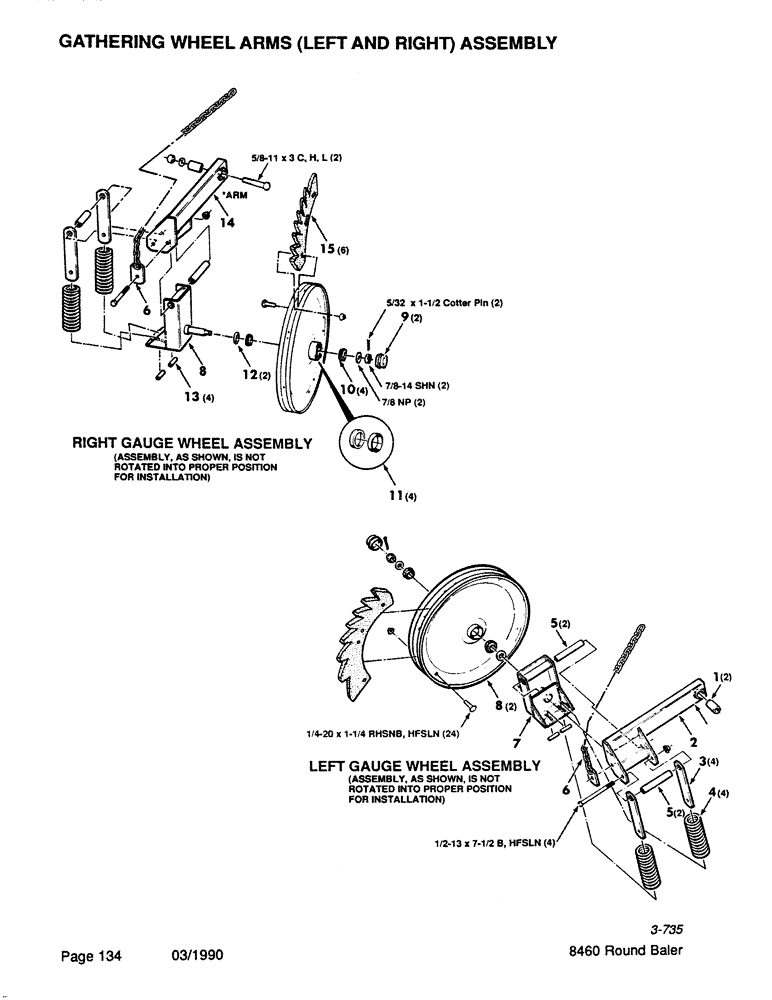

Запчасти Case IH 8460 (134) - GATHERING WHEEL ARMS, LEFT AND RIGHT, ASSEMBLY Pickup

1

284463

SPACER

BUSHING

2шт.

2

700117003

STRUT

- wheel, left

1шт.

3

700117013

STRAP

- link

4шт.

4

700707651

SPRING

- compression

4шт.

5

700117009

SPACER

BUSHING

4шт.

6

700117011

SUPPORT

- chain

2шт.

7

700116997

SPINDLE

BRACKET - spindle

2шт.

8

6868954

RIM

WHEEL ASSEMBLY - gathering

2шт.

9

26930

CAP

- hub

2шт.

10

700708092

ROLLER BEARING

BEARING CONE

4шт.

11

50104

BEARING CUP,50.01mm OD

4шт.

12

744912

SEAL

- grease

2шт.

13

1714773

PIN,1/2" x 2", Coiled

4шт.

14

700117004

SLIDE

STRUT - wheel, left

1шт.

15

8027476

SEGMENT

NOTCHED SEGMENT - rubber

6шт.

873562

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

1/2-13 x 7-1/2 B

4шт.

7701683

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 C

2шт.

7770175

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

1/4-20 x 1-1/4 RHSNB

24шт.

274760

SEAL KIT

7/8-14 SHN

2шт.

7705429

WASHER,7/8", SAE

7/8 NP

2шт.
