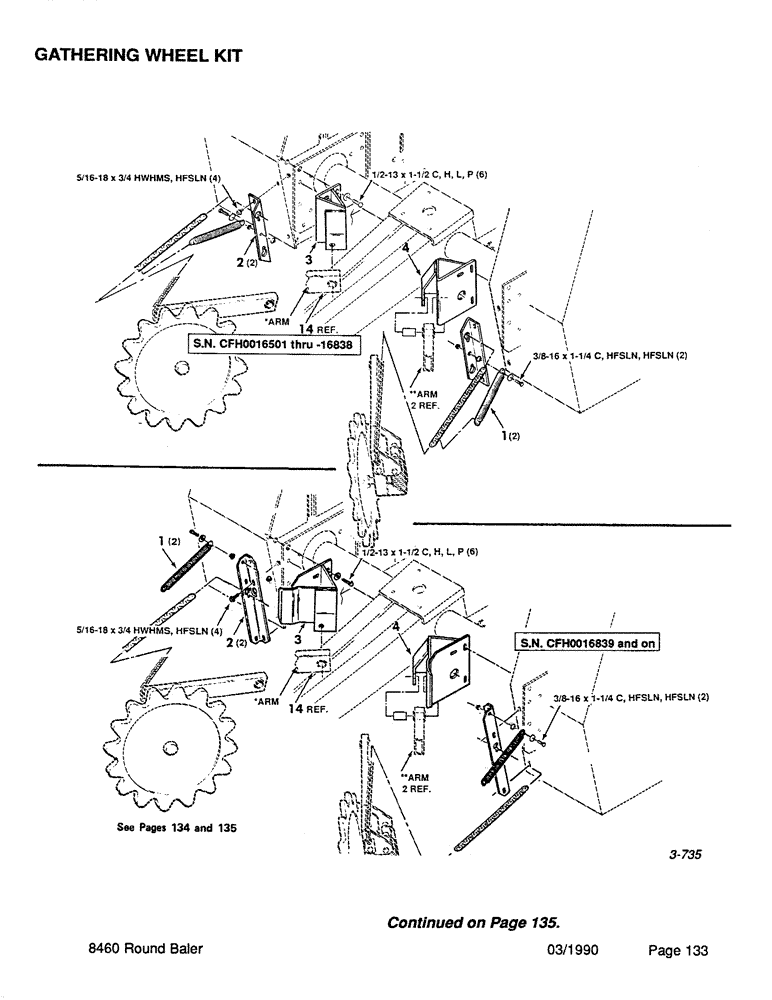

Запчасти Case IH 8460 (133) - GATHERING WHEEL KIT Pickup

K50428

GATHERING WHEEL KIT COMPLETE

1шт.

1

51200296

SPRING

- tension (S.N. CFG 0016501 thru CFH0016838)

2шт.

700708977

SPRING

- tension (S.N. CFH0016839 and on)

2шт.

2

700117014

ANGLE

- bracket (S.N. CFH0016501 thru CFH0016838)

2шт.

700119167

ANGLE

- bracket (S.N. CFH0016839 and on)

2шт.

3

700117016

SUPPORT

- pivot, right

1шт.

4

700117015

SUPPORT

- pivot, left

1шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

2шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

6шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

4шт.
