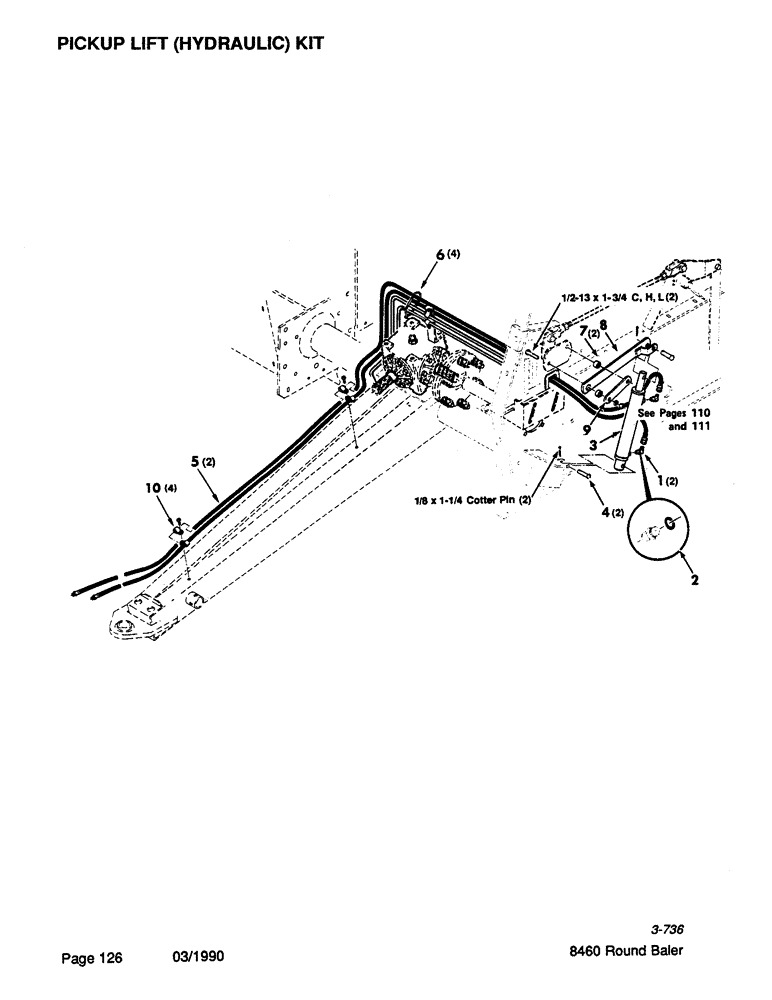

Запчасти Case IH 8460 (126) - PICKUP LIFT, HYDRAULIC, KIT Pickup

HK50446

ATTACHMENT

PICKUP LIFT (hydraulic) kit complete

1шт.

1

7746555

ELBOW

x 90 deg. with o-ring

2шт.

2

738468

O-RING

2шт.

3

700707410

CYLINDER

- hydraulic (S.N. CFH0016501 thru CFH0017432)

1шт.

700709416

CYLINDER

- hydraulic (S.N. CFH0017433 and on)

1шт.

4

63495

CLIP

5/8 x 2-1/2 clevis pin

2шт.

5

700704624

HOSE

- hydraulic

2шт.

6

722470

MOUNTING CLIP

TIE - cable

4шт.

7

6287155

SPACER

2шт.

8

700116173

LEVER

1шт.

9

700116172

PLATE

1шт.

10

755744

CLAMP

- hose

4шт.

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 C

2шт.

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 x 1 HWHTCTS

2шт.
