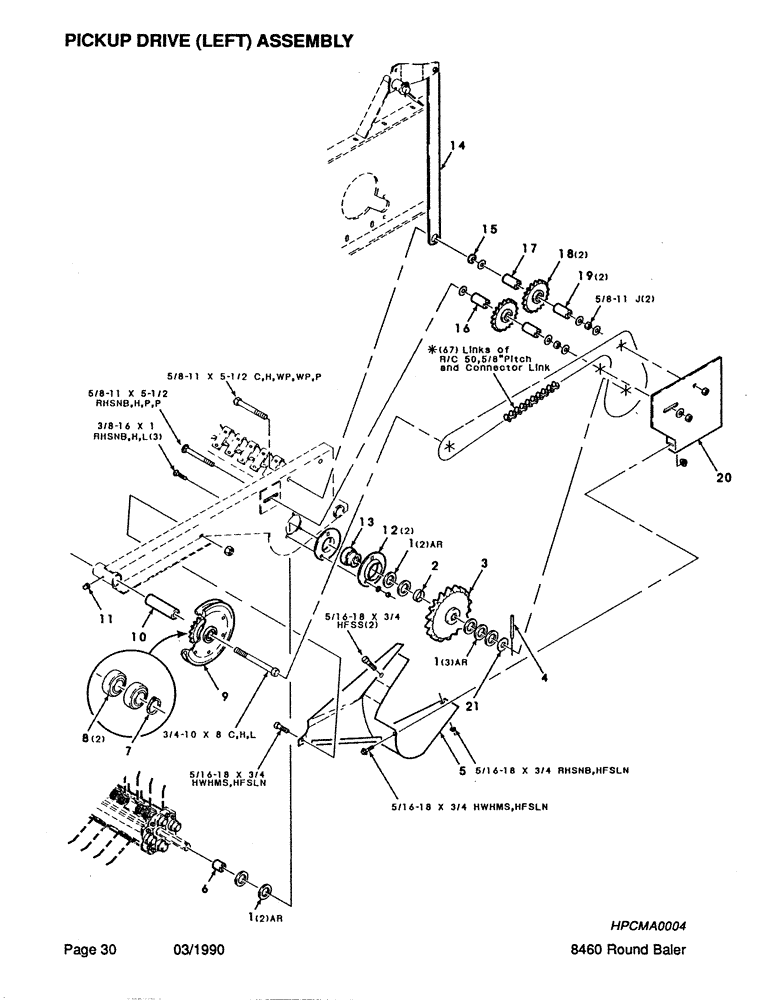

Запчасти Case IH 8460 (030) - PICKUP DRIVE, LEFT, ASSEMBLY Pickup

1

51200382

BUSHING

1-1/2 x 14 GAUGE MACHINERY BUSHING

7шт.

2

395871

SPACER

1шт.

3

700117122

SPROCKET ASSY.

SPROCKET - 50-P, 35-tooth

1шт.

4

38-32436

PIN,3/8" x 2 1/4", Coiled

3/8" x 2 1/4", Coiled

1шт.

5

700114135

DEFLECTOR

- left

1шт.

6

700114174

SPACER

1шт.

7

740712

OIL SEAL

SNAP RING

1шт.

8

712604

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING - cylindrical

2шт.

9

700114166

PULLEY

SHEAVE AND SPROCKET ASSEMBLY

1шт.

10

700114171

TUBE,38.1 mm OD, 135.5 mm Length

BUSHING - pivot

1шт.

11

77032

FITTING

1/4-28 ZERK

1шт.

12

51417

PIPE

- bearing

2шт.

13

700709621

SPHERICAL BEARING,31.78mm Hex x 72mm OD x 25mm W

BEARING - spherical, hex bore

1шт.

14

700114170

STRAP

- link, pickup

2шт.

15

378521

SPACER

BUSHING

1шт.

16

6610844

SPACER

1шт.

17

6156871

SPACER

1шт.

18

211623C91

SPROCKET

- idler, 50-P, 17-tooth

2шт.

19

700114929

TUBE,31.75 mm OD, 41 mm Length

SPACER

1шт.

20

700114164

SHIELD

- chain

1шт.

21

52712

BUSHING

1-1/2 x 18 GAUGE MACHINERY BUSHING

1шт.

703934

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 C

1шт.

7883069

HARDWARE

3/4-10 x 8 C

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

1шт.

700047

BOLT

3/8-16 x 1 RHSNB

3шт.

7870603

BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 RHSNB

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

1шт.

703132

SERRATED SCREW

5/16-18 x 3/4 HFSS

1шт.
