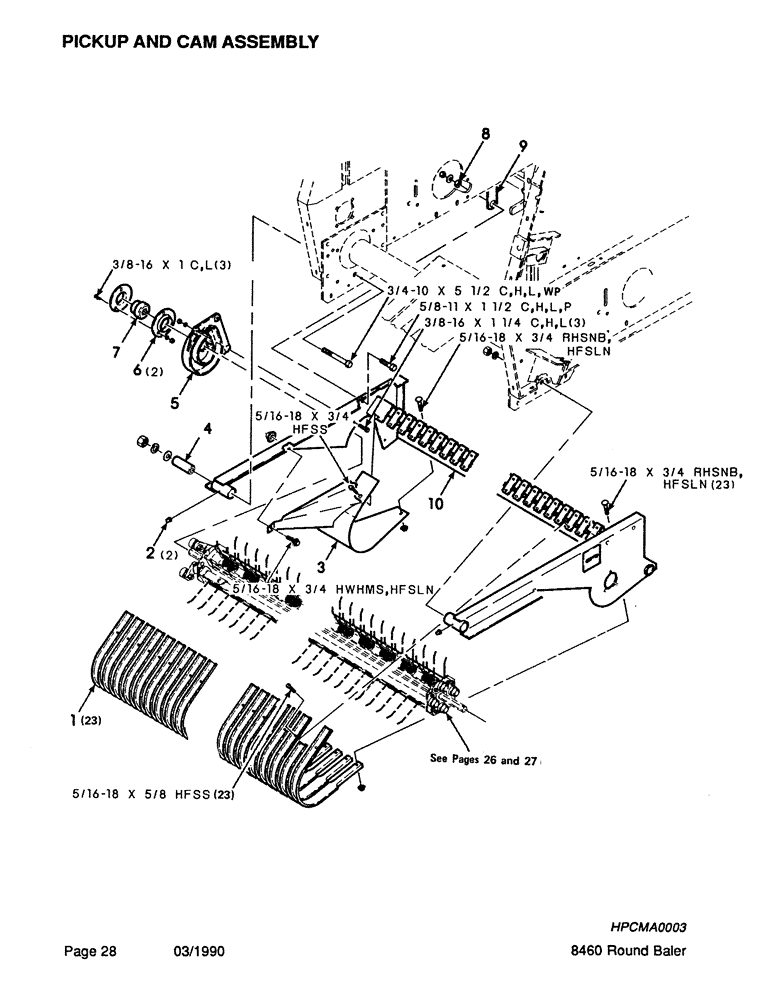

Запчасти Case IH 8460 (028) - PICKUP AND CAM ASSEMBLY Pickup

1

700114144

GUARD

WRAPPER - tine

23шт.

2

77032

FITTING

1/4-28 ZERK

1шт.

3

700114136

DEFLECTOR

- right

1шт.

4

700114172

TUBE,38.1 mm OD, 102 mm Length

BUSHING - pivot

1шт.

5

700116125

HOUSING

CAMTRACK

1шт.

6

617863R1

FLANGED BEARING

- bearing

2шт.

7

713834

BUSHING

- spherical, hex bore

2шт.

8

378521

SPACER

BUSHING

1шт.

9

700114170

STRAP

- link, pickup

1шт.

10

700114119

FRAME

- pickup

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

3шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

3шт.

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 C

1шт.

7883002

BOLT,Hex 3/4" - 10 x 5 1/2", Gr 5

3/4-10 x 5-1/2 C

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

24шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.

7703440

BOLT,Hex Flange, 5/16" - 18 x 5/8"

5/16-18 x 5/8 HFSS

23шт.

703132

SERRATED SCREW

5/16-18 x 3/4 HFSS

1шт.
