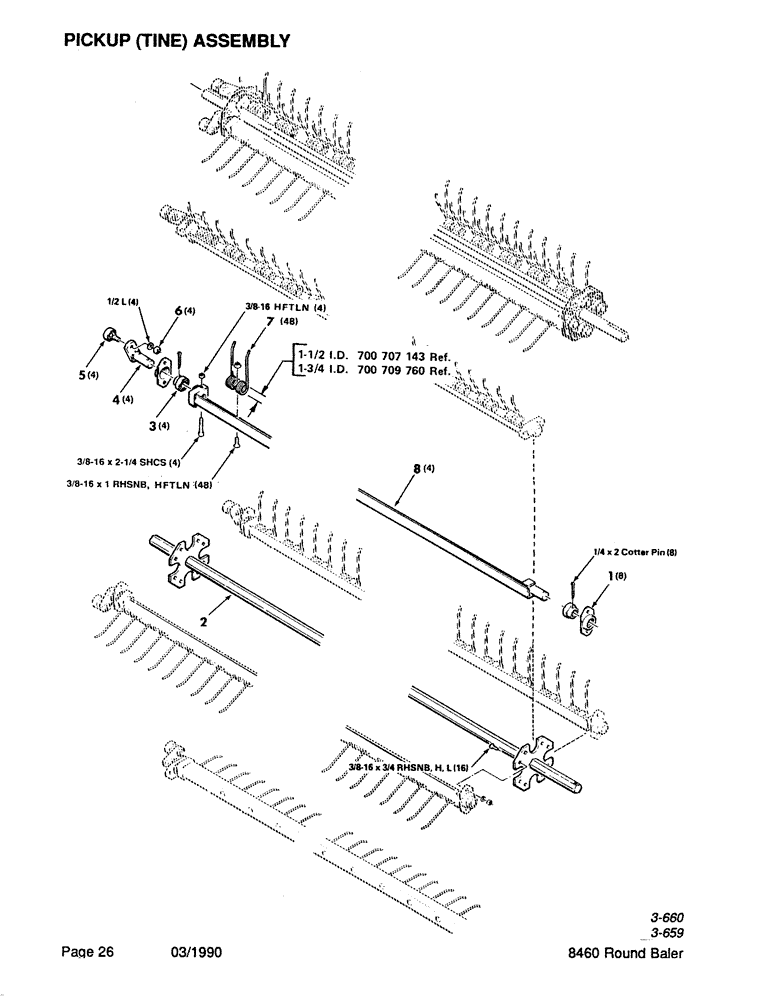

Запчасти Case IH 8460 (026) - PICKUP, TINE, ASSEMBLY Pickup

1

700108622

FLANGED BEARING

FLANGE - bearing

8шт.

2

700114148

ROTOR

SHAFT - rotor

1шт.

3

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - spherical

8шт.

4

700108618

ARM

CRANK - tine bar

4шт.

5

700705612

CAM FOLLOWER

BEARING - cam

4шт.

6

702700045

LOCK NUT

- spiralock

4шт.

7

700707143

TINE

- double (S.N. CFH0016501 thru CFH0017638) mating part (diameter) for the 700114155 bar.

48шт.

700709760

TINE

TINE - double (S.N. CFH0017639 and on) mating part (diameter) for the 700119965 bar.

48шт.

8

700114155

ANGLE

BAR - tine (S.N. CFH0016501 thru CFH0017638) sub 700119965 bar, 700709760 tine (12) and 3/8-16 HFTLN (12)

4шт.

700119965

ANGLE BAR

BAR - tine (S.N. CFH0017639 and later) 700709760 tine is mating part.

4шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

16шт.

700047

BOLT

3/8-16 x 1 RHSNB

40шт.

701367

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 x 2-1/4 SHCS

4шт.

88902

NUT,3/8"-16

3/8-16 HCLN (use with flat washer)

52шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

52шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3/8 NP (use with 3/8-16 HCLN only)

36шт.
