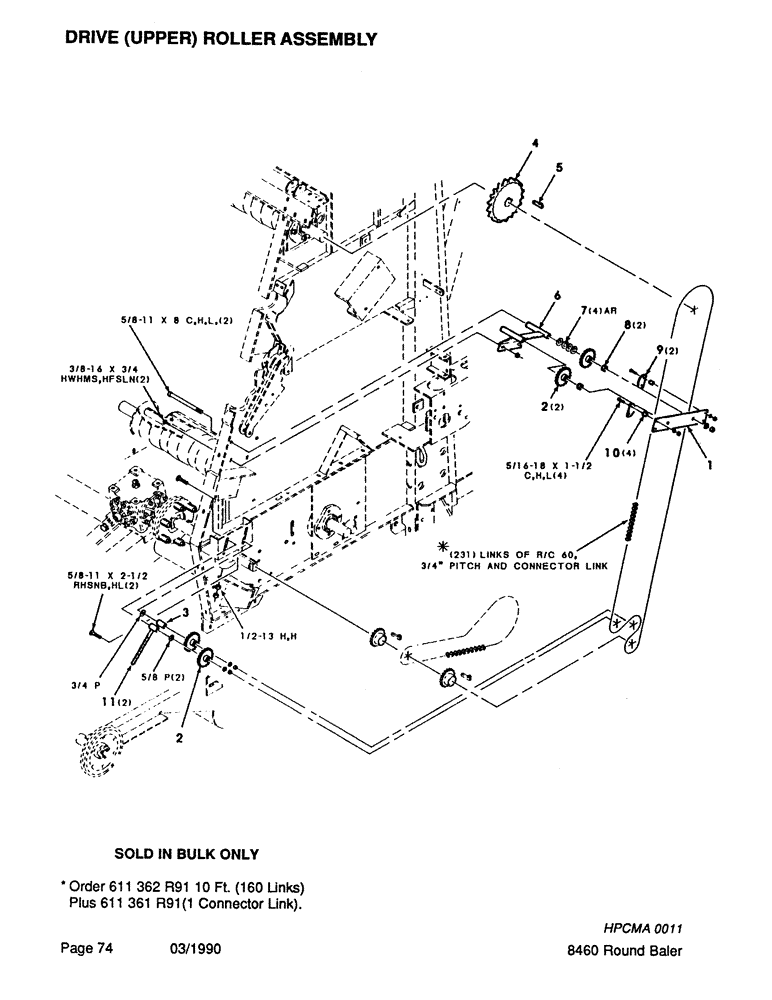

Запчасти Case IH 8460 (074) - DRIVE, UPPER, ROLLER ASSEMBLY Driveline

1

700116044

SUPPORT

- tie, sprocket

1шт.

2

541857R92

SPROCKET,15T

- idler, 60-P, 15 tooth

4шт.

3

6229256

SPACER

1шт.

4

6867659

SPROCKET ASSY.

SPROCKET - 60-P, 40-tooth

1шт.

5

861088

BUCKET TOOTH KEY

1/2 x 1/2 x 2 gib key

1шт.

6

700116054

SUPPORT

- idler

1шт.

7

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 x 18 GAUGE MACHINERY BUSHING

4шт.

8

6529705

BUSHING

SPACER

2шт.

9

700116041

GUIDE

- chain

2шт.

10

6827794

SPACER

4шт.

11

700119665

BOLT

DRAWBOLT

1шт.

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 x 1-1/2 C

4шт.

873836

BOLT

5/8-11 x 8 C

2шт.

7870181

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 RHSNB

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

2шт.
