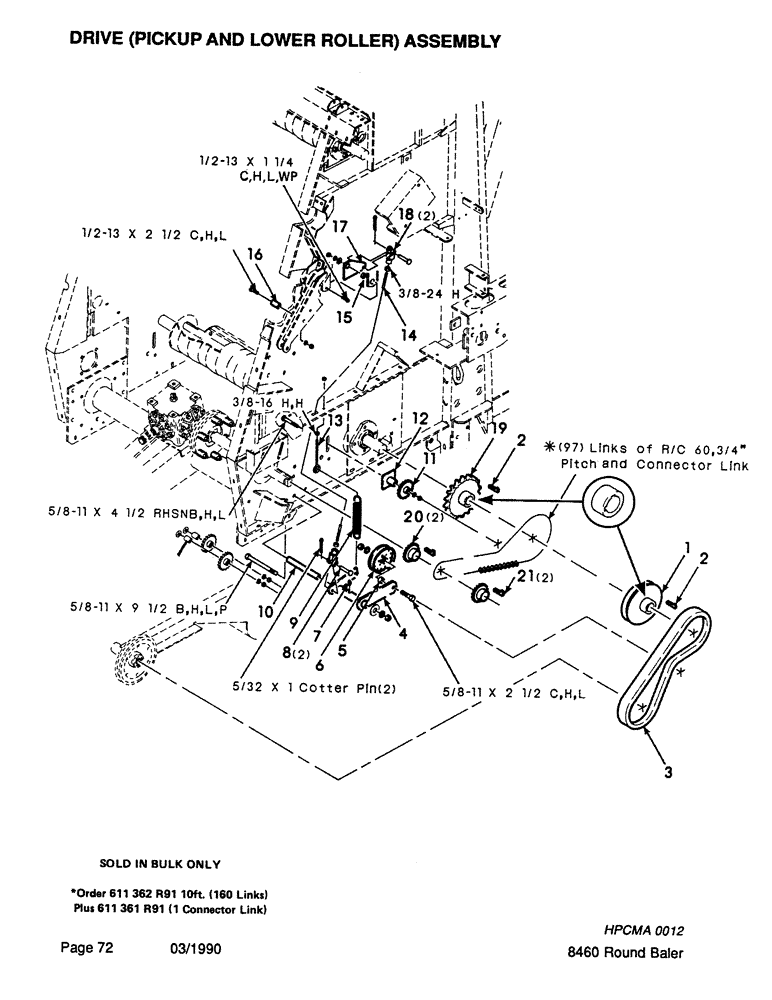

Запчасти Case IH 8460 (072) - DRIVE, PICKUP AND LOWER ROLLER, ASSEMBLY Driveline

1

700116042

SHEAVE

- drive

1шт.

2

861088

BUCKET TOOTH KEY

1/2 x 1/2 x 2 GIB KEY

2шт.

3

57596

BELT

V-BELT

1шт.

4

700116045

LEVER

- idler

1шт.

5

254409

SPACER

1шт.

6

662958R91

PULLEY

IDLER - flat

1шт.

7

77032

FITTING

1/4-28 ZERK

1шт.

8

427-8150

CLEVIS PIN,1/2" x 1 1/2"

1/2 x 1-1/2 CLEVIS PIN

2шт.

9

858167

SPRING

- tension

1шт.

10

700116050

PIVOT ASSY.,25.4 mm OD, 204 mm Length

SPACER

1шт.

11

541857R92

SPROCKET,15T

- idler, 60-P, 15-tooth

1шт.

12

700116039

SUPPORT

- idler

1шт.

13

51200285

SCREW

DRAWBOLT

1шт.

14

700116052

ROD,THREADED

ROD - link

1шт.

15

6582696

SPACER

BUSHING

1шт.

16

6234710

SPACER

1шт.

17

700116051

PLATE

- rocker

1шт.

18

766691

SPARE PART

2шт.

19

6867659

SPROCKET ASSY.

SPROCKET - 60-P, 40-tooth

1шт.

20

7850720

PINION

SPROCKET - 60-P, 14-tooth

2шт.

21

61572

BUCKET TOOTH KEY

3/8 x 3/8 x 1-3/4 GIB KEY

2шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 x 2-1/2 C

1шт.

7701659

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 C

1шт.

7773484

BOLT,Hex, 5/8" - 11 x 9 1/2", Gr 5

5/8-11 x 9-1/2 B

1шт.

7870249

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 RHSNB

1шт.
