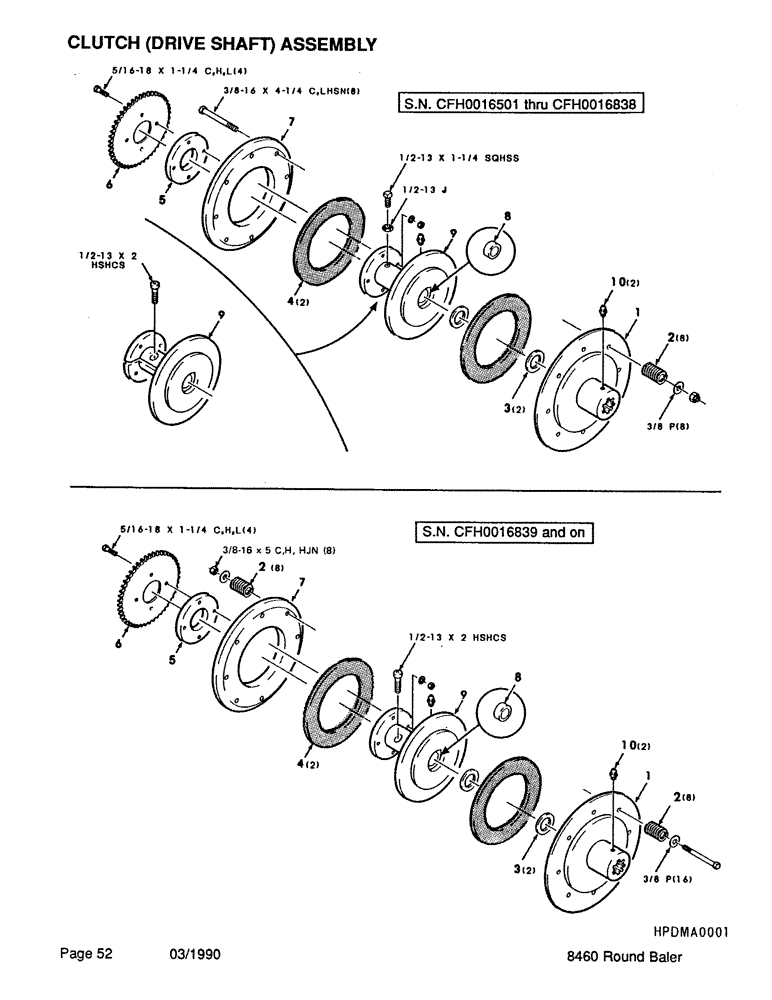

Запчасти Case IH 8460 (052) - CLUTCH, DRIVE SHAFT, ASSEMBLY Driveline

1

700116081

DISC

PLATE - pressure, outer

1шт.

2

700707442

SPRING

- compression (S.N. CFH0016501 thru CFH0016838) sub. 058107 spring (2) 7701428 C and 3/8 P

8шт.

58107

SPRING

- compression (S.N. CFH0016839 and on)

16шт.

3

700708327

SEAL

- grease

2шт.

4

700710946

CLUTCH PLATE

DISC - fiber, clutch

2шт.

5

700116188

LARGE PLATE

PLATE - spacer

1шт.

6

700116189

SPROCKET ASSY.

SPROCKET - 40 P, 46-tooth

1шт.

7

700116075

DISC

PLATE - pressure, inner

1шт.

8

700709417

BRONZE BUSHING,34.95 mm ID x 41.351 mm OD x 44.45 mm

BUSHING - oilite

1шт.

9

700116076

FLANGE

D DISC WITH HUB (S.N. CFH0016501 thru CFH0016838) substitute 700119136 hub and 1/2-13 x 3-1/2 C,H,L

1шт.

700119136

FLANGE

D DISC WITH HUB (S.N. CFH0016839 and on)

1шт.

10

77032

FITTING

1/4-29 ZERK (short)

2шт.

7706768

DRIVE BUSHING,38.25mm ID x 47.74mm OD x 36.1mm L

5/16-18 x 1-1/4 C

4шт.

700702141

BOLT,Hex, 3/8"-16 x 4 1/4", G5

3/8-16 x 4-1/2 C

8шт.

7701428

BOLT,Hex, 3/8" - 16 x 5", Gr 5

3/8-16 x 5 C

8шт.

71142

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 x 2 HSHCS

1шт.

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

1/2-13 x 1-1/4 CPSQHSS

1шт.

74781

NUT

3/8-16 LHSN

8шт.
