(023) - GEARBOX, SERIAL NUMBER CFH0016522 AND ON

Запчасти Case IH 8460 (023) - GEARBOX, SERIAL NUMBER CFH0016522 AND ON Driveline

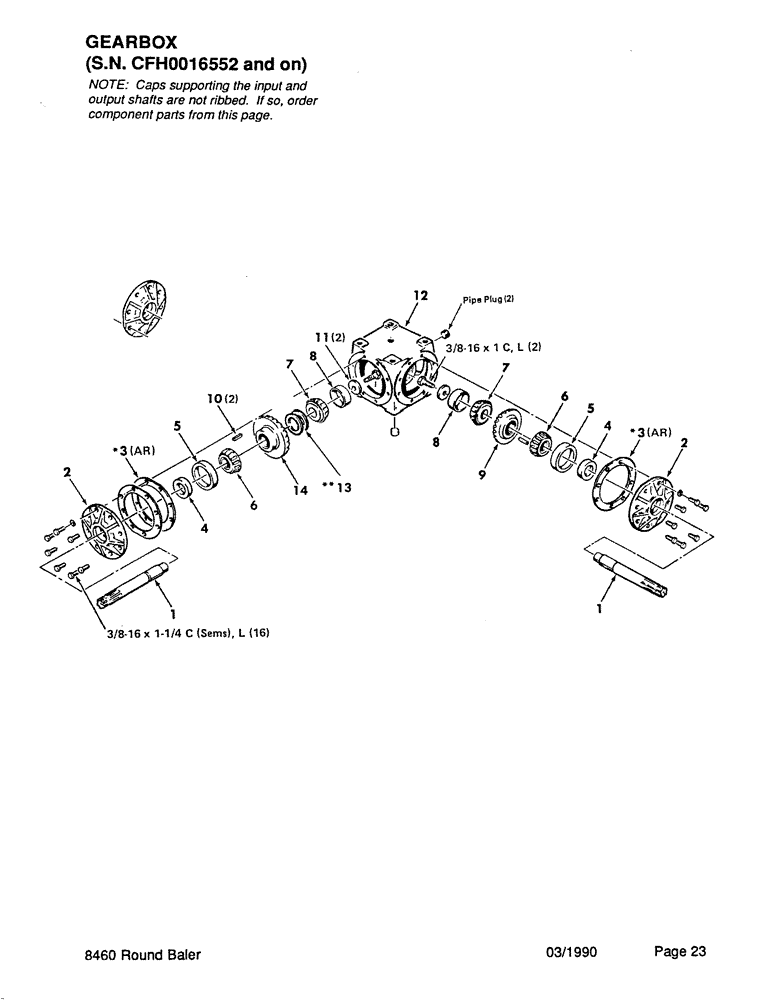

Схема запчастей Case IH 8460 - (023) - GEARBOX, SERIAL NUMBER CFH0016522 AND ON Driveline
7
13
3
8
1
6
14
4
2
8
6
9
3
7
5
10
1
12
11
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700709190

GEARBOX ASSY

GEARBOX COMPLETE - primary (S.N. CFH0016552 and on)

1шт.

1

700709400

SHAFT

2шт.

2

700709192

CAP

ASSEMBLY (with cup and seal)

2шт.

3

806950

GASKET

- .003

1шт.

Caps supporting the input and output shafts are not ribbed. If so, order component parts from this page.

1шт.

806943

GASKET

- .005

1шт.

Caps supporting the input and output shafts are not ribbed. If so, order component parts from this page.

1шт.

806935

GASKET

- .015

1шт.

Caps supporting the input and output shafts are not ribbed. If so, order component parts from this page.

1шт.

4

800383

SEAL

- oil

2шт.

5

7710106

DIFFERENTIAL

BEARING CUP

2шт.

6

7710114

BEARING

CONE

2шт.

7

800334

ROLLER BEARING,29.38 mm ID x 25.433 mm

BEARING CONE

2шт.

8

800342

BEARING CUP,66.421 mm OD x 19.05 mm

CUP

2шт.

9

800359

GEAR

1шт.

10

700709193

KEY

- special

2шт.

11

700709419

WASHER

- special

2шт.

12

700709191

BOX

ASSEMBLY (with bearing cup)

1шт.

13

800243

SHIM

- .010

1шт.

Caps supporting the input and output shafts are not ribbed. If so, order component parts from this page.

1шт.

800250

SHIM

- .005

1шт.

Caps supporting the input and output shafts are not ribbed. If so, order component parts from this page.

1шт.

800268

SHIM

- .002

1шт.

Caps supporting the input and output shafts are not ribbed. If so, order component parts from this page.

1шт.

14

800318

GEAR

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

800417

SCREW

3/8-16 x 1-1/4 C (sems) grade 5

16шт.
