(022) - GEARBOX, SERIAL NUMBER CFH0016501 THROUGH CFH0016551

Запчасти Case IH 8460 (022) - GEARBOX, SERIAL NUMBER CFH0016501 THROUGH CFH0016551 Driveline

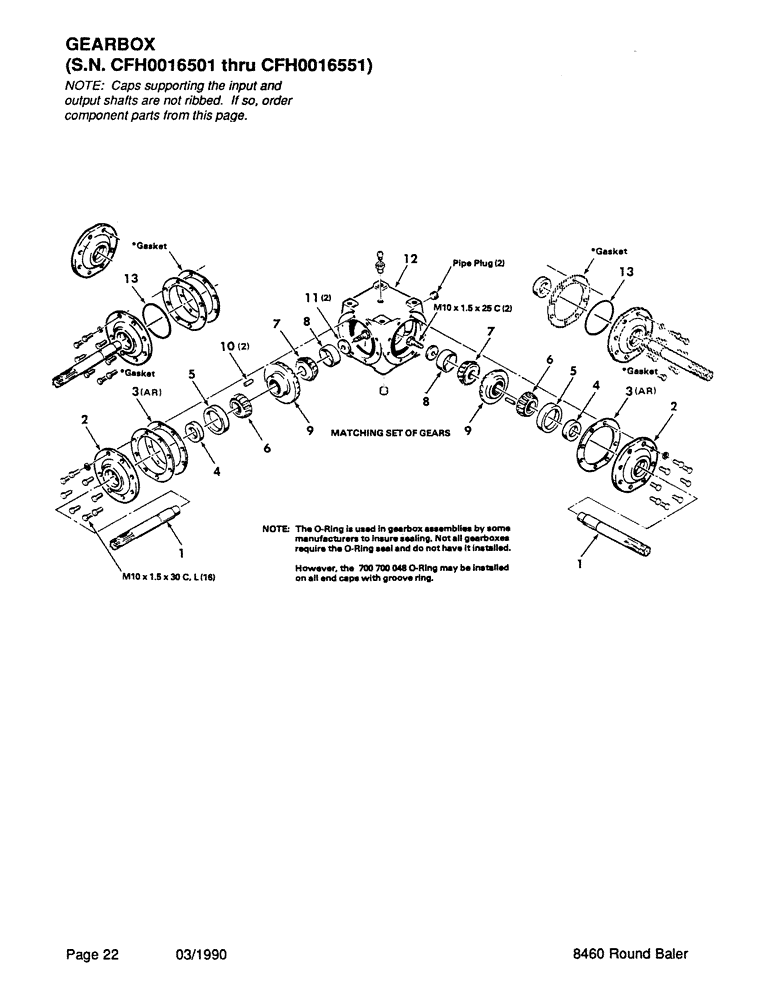

Схема запчастей Case IH 8460 - (022) - GEARBOX, SERIAL NUMBER CFH0016501 THROUGH CFH0016551 Driveline
6
12
8
2
9
10
7
5
7
6
13
1
8
11
2
4
13
1
5
9
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

6500540

GEARBOX

COMPLETE - primary (S.N. CFH0016501 thru CFH0016551)

1шт.

1

6501803

SHAFT

2шт.

2

6500581

CAP ASSY.

CAP ASSEMBLY (with cup and seal)

2шт.

3

806968

GASKET

- .002

1шт.

Caps supporting the input and output shafts are not ribbed. If so, order component parts from this page. NOTE The o-ring is used in gearbox assemblies by some manufacturers to insure sealing. Not all gearboxes require the o-ring seal and do not have it installed. However, the 700700048 o-ring may be installed on all end caps with groove ring.

1шт.

806943

GASKET

- .005

1шт.

Caps supporting the input and output shafts are not ribbed. If so, order component parts from this page. NOTE The o-ring is used in gearbox assemblies by some manufacturers to insure sealing. Not all gearboxes require the o-ring seal and do not have it installed. However, the 700700048 o-ring may be installed on all end caps with groove ring.

1шт.

806935

GASKET

- .015

1шт.

Caps supporting the input and output shafts are not ribbed. If so, order component parts from this page. NOTE The o-ring is used in gearbox assemblies by some manufacturers to insure sealing. Not all gearboxes require the o-ring seal and do not have it installed. However, the 700700048 o-ring may be installed on all end caps with groove ring.

1шт.

4

7744543

SEAL

SEAL - oil

2шт.

5

7710106

DIFFERENTIAL

BEARING CUP

2шт.

6

7710114

BEARING

CONE

2шт.

7

800334

ROLLER BEARING,29.38 mm ID x 25.433 mm

BEARING CONE

2шт.

8

800342

BEARING CUP,66.421 mm OD x 19.05 mm

CUP

2шт.

9

6502157

GEAR

MATCHED SET OF GEARS (20-tooth and 27-tooth)

1шт.

10

861211

KEY

- special

2шт.

11

6501795

WASHER

- special

2шт.

12

6500607

TRANSFER BOX

BOX ASSEMBLY (with bearing cup)

1шт.

13

700700048

O-RING

(5.714 I.D.)

2шт.

14

846642

BUSHING

1/2 NPFT x 1/8 NPTF, reducer bushing

1шт.

700708349

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

M10 x 1.5 x 25 hex cap screw grade 5

2шт.

700708350

SCREW

M10 x 1.5 x 30 hex cap screw grade 5

16шт.

700702319

SCREW

10 HELICAL SPRING LOCK WASHER

16шт.
