Запчасти Case IH 8455T (7-20) - MESH WRAP BOX ASSEMBLY, SERIAL NUMBER CFH0084586 AND LATER (12) - MAIN FRAME

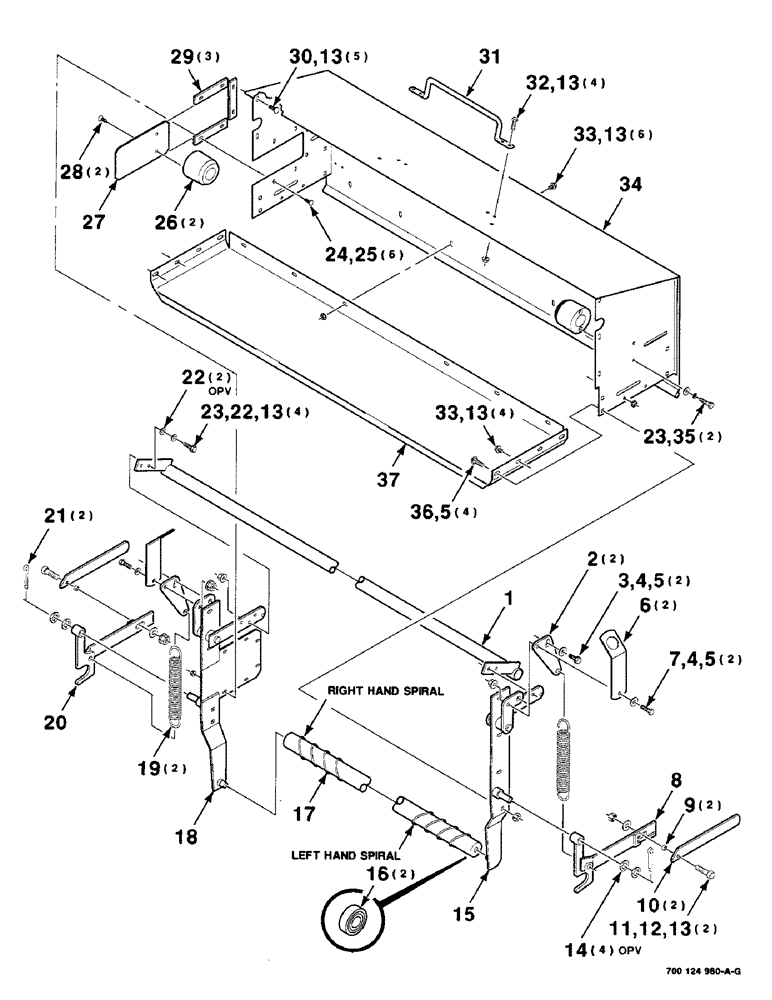

Схема запчастей Case IH 8455T - (7-20) - MESH WRAP BOX ASSEMBLY, SERIAL NUMBER CFH0084586 AND LATER (12) - MAIN FRAME
1
33
5
23
28
34
22
5
2
27
11
16
36
12
13
4
15
30
23
31
13
14
20
13
13
29
19
3
4
22
17
33
6
9
37
35
32
24
13
26
5
18
10
21
25
8
13
7

Артикул

Название

Примечание

Количество

1

700125873

PIPE

WA

1шт.

2

700136022

ARM

2шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

4

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

6

700125846

HANGER

2шт.

7

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

8

700125770

LATCH

WA - left

1шт.

9

276022

SPACER

2шт.

10

700125777

HANDLE

2шт.

11

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

2шт.

12

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

25шт.

14

52233

BUSHING

5/8 X 14 GAUGE NRMB

4шт.

15

700128333

SUPPORT

WA - left

1шт.

16

700710877

BEARING, ROLLER, CYL,15 mm ID x 35 mm OD x 11 mm

BEARING

2шт.

17

700125869

ROLLER ASSY.

ROLLER ASSEMBLY (Includes item 16)

1шт.

18

700128334

SUPPORT

WA - right

1шт.

19

858167

SPRING

- extension

2шт.

20

700125776

LATCH

WA - right

1шт.

21

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

22

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

23

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

6шт.

24

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

6шт.

25

1703354

NUT

1/4-20 HFTLN GR/G

6шт.

26

700127924

MOUNTING PARTS

MOUNTING - spool

2шт.

27

700127926

PLATE

1шт.

28

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

5/16-18 X 3/4 HSFCHCS SPL

2шт.

29

700127925

PLATE

3шт.

30

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

31

700710878

HANDLE

1шт.

32

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

33

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

34

700128341

LID

WA

1шт.

35

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

36

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

37

700128309

PANEL

- floor

1шт.

Выбрано товаров: 37
