Запчасти Case IH 8455T (7-14) - SHIELDS ASSEMBLY, SIDE (12) - MAIN FRAME

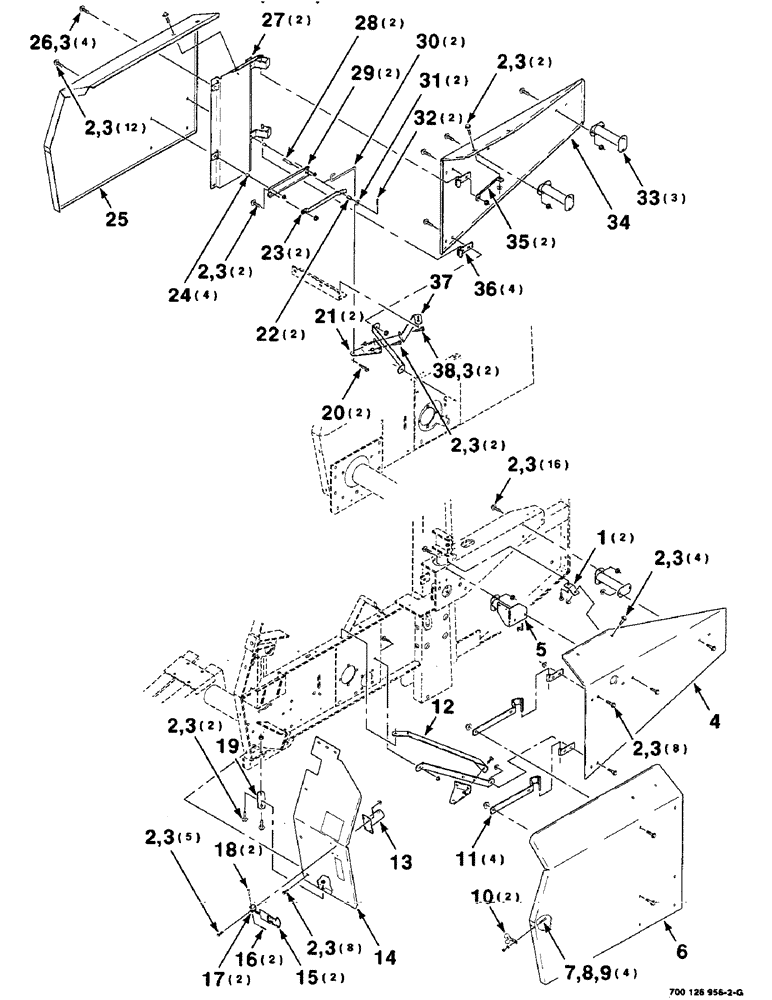

Схема запчастей Case IH 8455T - (7-14) - SHIELDS ASSEMBLY, SIDE (12) - MAIN FRAME
34
22
37
12
35
2
20
2
16
1
2
3
3
3
3
8
3
24
27
33
3
3
3
26
14
28
13
11
9
25
17
3
38
4
29
5
2
2
30
21
23
3
3
3
31
6
15
2
18
7
2
2
2
10
19
36
2
32

Артикул

Название

Примечание

Количество

1

700114084

STRAP

2шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

61шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

67шт.

4

700131977

SHIELD

- left (Includes decal)

1шт.

5

700117075

SUPPORT

WA

1шт.

6

700116002

DOOR

- left (Includes decals)

1шт.

7

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

4шт.

8

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

9

225-14110

NUT,#10-24

4шт.

10

7025075

BRACKET

2шт.

11

700115984

HINGE

WA

4шт.

12

700116000

STRAP

- left

1шт.

13

700115991

SUPPORT

- jack

1шт.

14

700117071

PANEL

- left (Includes decals)

1шт.

15

494307C1

LATCH

HOOK - rubber

2шт.

16

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

17

776674

SUPPORT

ANCHOR

2шт.

18

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

2шт.

19

700115977

STRAP

1шт.

20

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

21

700117082

SUPPORT

2шт.

22

754606

SPRING

- compression

2шт.

23

700117079

LATCH

- lower

2шт.

24

700117081

SPACER

4шт.

25

700116003

DOOR

- right (Includes decals)

1шт.

26

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

5/16-18 X 1-1/2 HWHMS

4шт.

27

700116028

SUPPORT

2шт.

28

439-5532

HEADED PIN,5/16" x 2"

5/16 X 2 CLEVIS PIN

2шт.

29

700117080

CHANNEL

2шт.

30

700117078

SUPPORT

2шт.

31

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

32

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), " 1/8" x 3/4"

2шт.

33

700115999

SUPPORT

WA

3шт.

34

700131973

SHIELD

- right

1шт.

35

700117083

STRAP

2шт.

36

700115986

HINGE

WA

4шт.

37

700116001

STRAP

- right

1шт.

38

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

Выбрано товаров: 38
