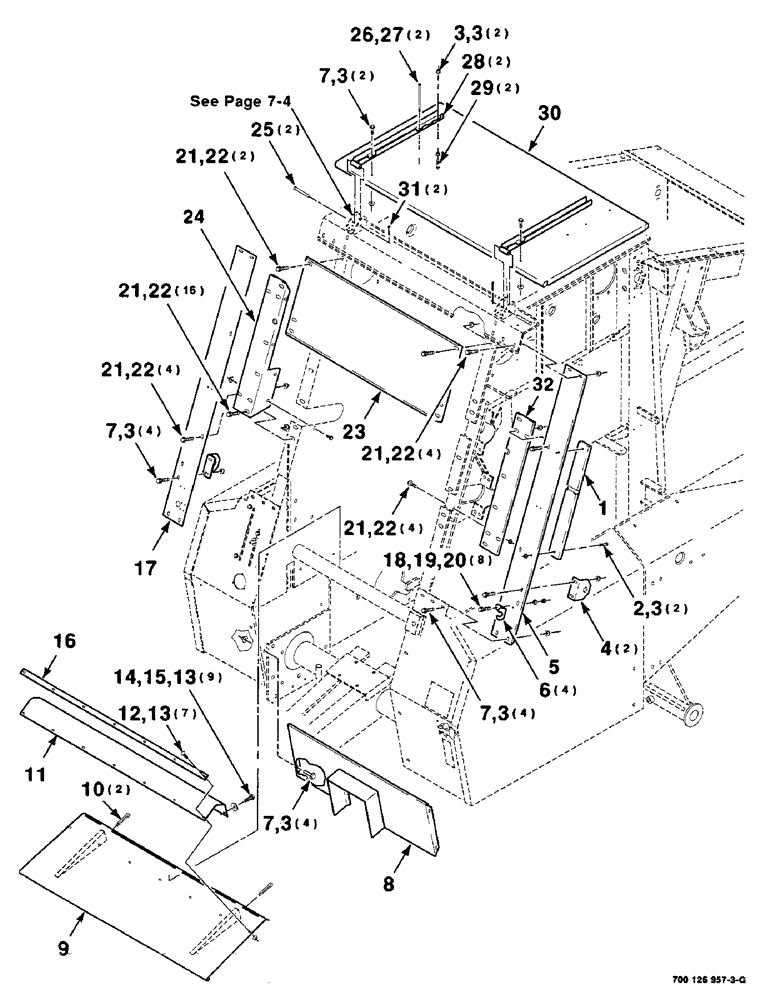

Запчасти Case IH 8455T (7-10) - SHIELDS ASSEMBLY, UPPER CENTER (12) - MAIN FRAME

1

700709195

BUMPER

- chain

1шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

20шт.

4

700117068

SUPPORT

2шт.

5

700117050

PANEL

- left

1шт.

6

7025075

BRACKET

4шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

14шт.

8

700116021

SHIELD

WA

1шт.

9

700116008

SHIELD

WA

1шт.

10

432-1248

COTTER PIN,3/16" x 3"

3/16" x 3"

2шт.

11

700712791

FLAP

1шт.

12

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

7шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

16шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

9шт.

15

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

9шт.

16

700128325

STRAP

1шт.

17

700117057

PANEL

- right

1шт.

18

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR2

8шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

20

225-14110

NUT,#10-24

8шт.

21

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

30шт.

22

231-5146

FLANGE NUT,3/8"-16

30шт.

23

700117102

SHIELD

1шт.

24

700116216

SHIELD

- right

1шт.

25

Q657

HEADED PIN,9.53mm OD x 69.85mm L

3/8 X 2-3/4 CLEVIS PIN

2шт.

26

413-496

BOLT,Hex, 1/4" - 20 x 6", Gr 5

1/4-20 X 6 C

2шт.

27

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

28

700122786

HINGE

WA

2шт.

29

7773930

BOLT

5/16-18 X 2 FTC

2шт.

30

700122810

SHIELD

1шт.

31

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

32

700116215

SHIELD

- left

1шт.
