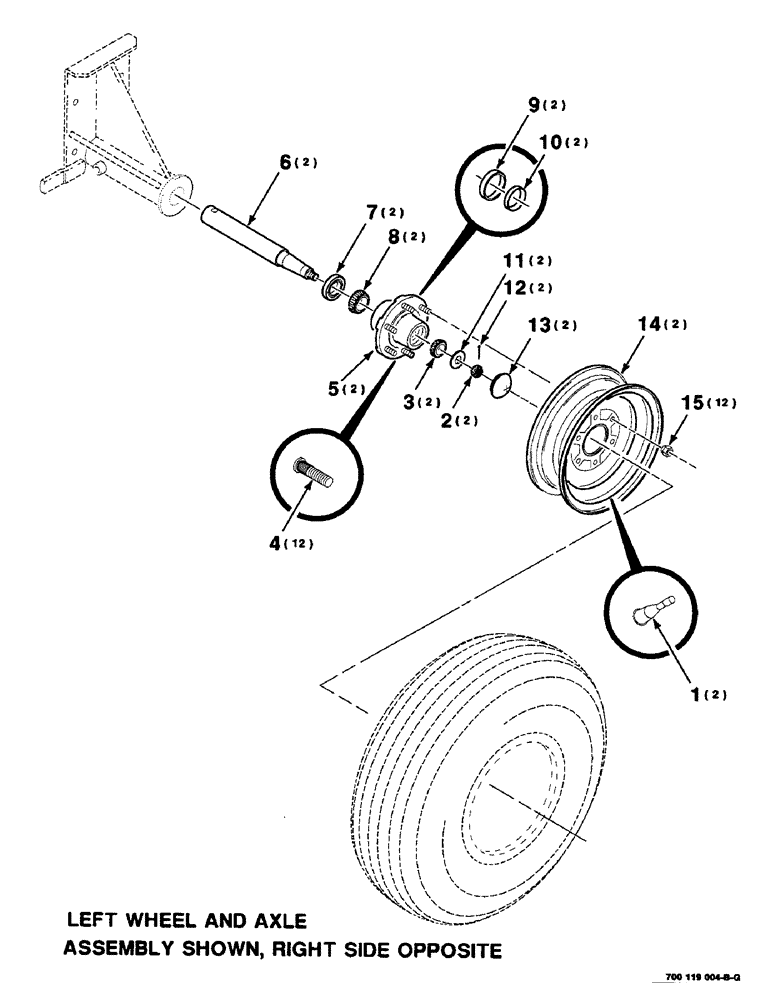

Запчасти Case IH 8455T (7-06) - WHEEL, HUB AND AXLE ASSEMBLY (12) - MAIN FRAME

1

A38261

VALVE

STEM - valve

2шт.

2

425-1312

SLOTTED NUT,3/4"-16, G5

3/4-16 SLOTTED HEX NUT

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - cone, outer

2шт.

4

826370

BOLT,Ribbed Nk, 9/16" - 18 x 2.12"

9/16-18 RIBBED NECK BOLT

12шт.

5

700709830

HUB

ASSEMBLY (Includes items 9, 10 & 4)

2шт.

6

700114346

SPINDLE

2шт.

7

844050

SEAL

2шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING - cone, inner

2шт.

9

663558R1

BEARING CUP

BEARING - cup, inner

2шт.

10

651817R1

BEARING CUP

BEARING - cup, outer

2шт.

11

26971

WASHER

2шт.

12

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

13

518842R1

CAP

HUB - cap

2шт.

14

700707982

RIM

WHEEL, 13.5 - high flotation (Includes item 1)

2шт.

15

G49041

WHEEL NUT

9/16-18 WHEEL NUT

12шт.
