(8-32) - MESH WRAP, HYDRAULIC CLUTCH ASSEMBLY, PICKUP, SERIAL NUMBER CFH0084546 AND LATER

Запчасти Case IH 8455T (8-32) - MESH WRAP, HYDRAULIC CLUTCH ASSEMBLY, PICKUP, SERIAL NUMBER CFH0084546 AND LATER (07) - HYDRAULICS

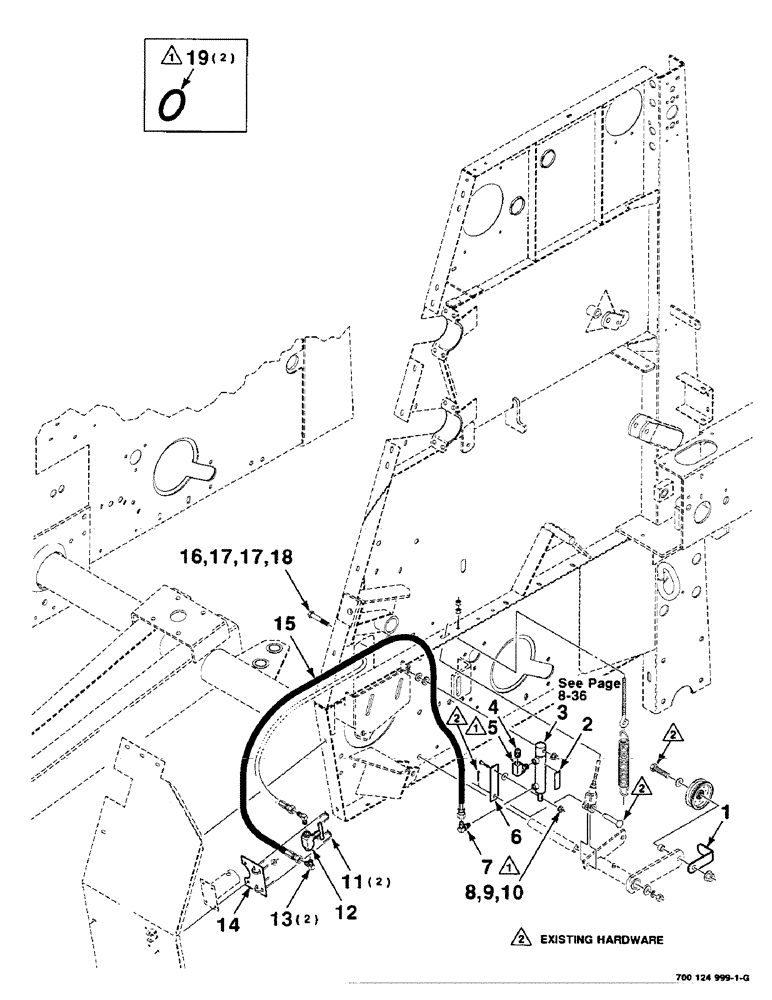

Схема запчастей Case IH 8455T - (8-32) - MESH WRAP, HYDRAULIC CLUTCH ASSEMBLY, PICKUP, SERIAL NUMBER CFH0084546 AND LATER (07) - HYDRAULICS
2
13
5
3
17
12
1
16
8
14
15
18
6
10
11
7
17
4
9
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700124977

ANGLE

1шт.

2

700715705

DECAL

- operational

1шт.

3

700711411

CYLINDER

ASSEMBLY - hydraulic

1шт.

4

700704639

PLUG

- vented

1шт.

5

7791916

ELBOW

- 90 degrees (Includes item 23)

1шт.

6

700124976

LINK

STRAP

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (Includes item 23)

1шт.

9

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

1шт.

10

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

11

529070

CABLE TIE,368.3mm L

TIE - cable

2шт.

12

700711345

VALVE

- needle

1шт.

13

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

1/4 X 90 DEGREE ELBOW

2шт.

14

700136007

PLATE

- mounting

1шт.

15

7796840

HOSE

- hydraulic

1шт.

16

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

17

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

18

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

19

738468

O-RING

2шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
