(8-20) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700712159 HYD. CYL. ASSY. COMPLETE, 1-3/4" BORE X 32" STROKE

Запчасти Case IH 8455T (8-20) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700712159 HYD. CYL. ASSY. COMPLETE, 1-3/4" BORE X 32" STROKE (07) - HYDRAULICS

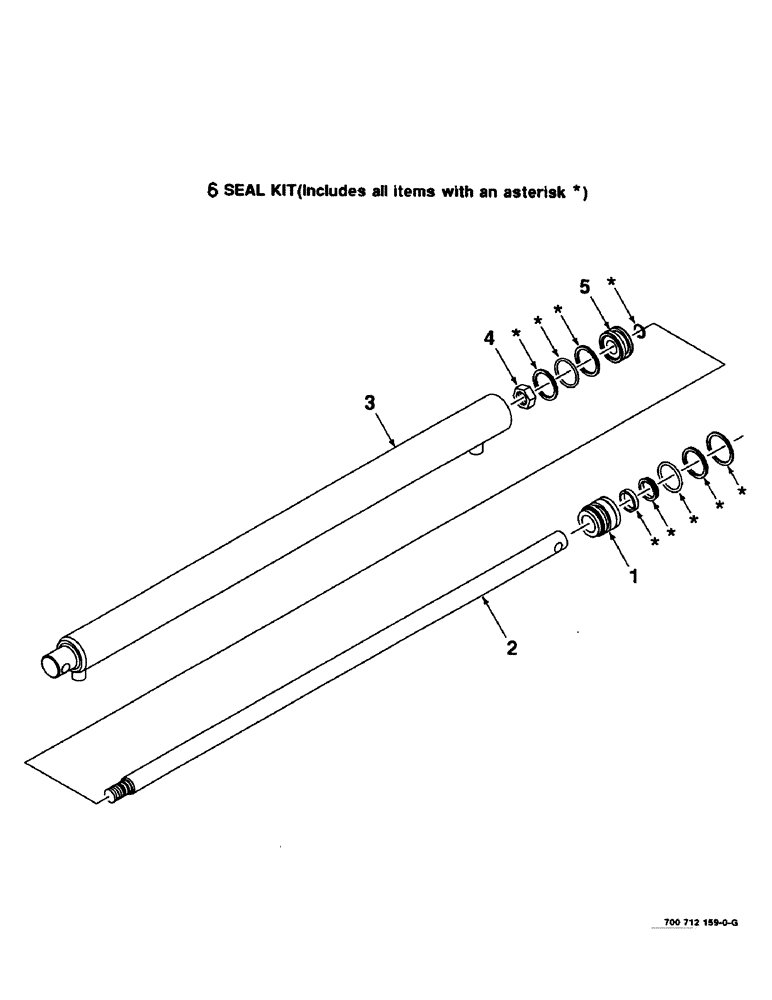

Схема запчастей Case IH 8455T - (8-20) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700712159 HYD. CYL. ASSY. COMPLETE, 1-3/4" BORE X 32" STROKE (07) - HYDRAULICS
4
6
3
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712159

CYLINDER ASSY.

HYDRAULIC CYLINDER COMPLETE (1-3/4 Inch bore x 32 inch stroke)

1шт.

1

700712477

GUIDE

1шт.

2

700712478

ROD

1шт.

3

700712479

BODY

- cylinder

1шт.

4

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

5

700712480

PISTON

1шт.

6

700712176

GASKET KIT

SEAL KIT

1шт.
