(8-18) - HYDRAULIC CYLINDER ASSEMBLY, LOWER TENSIONER, 700712160 HYD. CYL. COMPLETE, 2" BORE X 16 " STROKE

Запчасти Case IH 8455T (8-18) - HYDRAULIC CYLINDER ASSEMBLY, LOWER TENSIONER, 700712160 HYD. CYL. COMPLETE, 2" BORE X 16 " STROKE (07) - HYDRAULICS

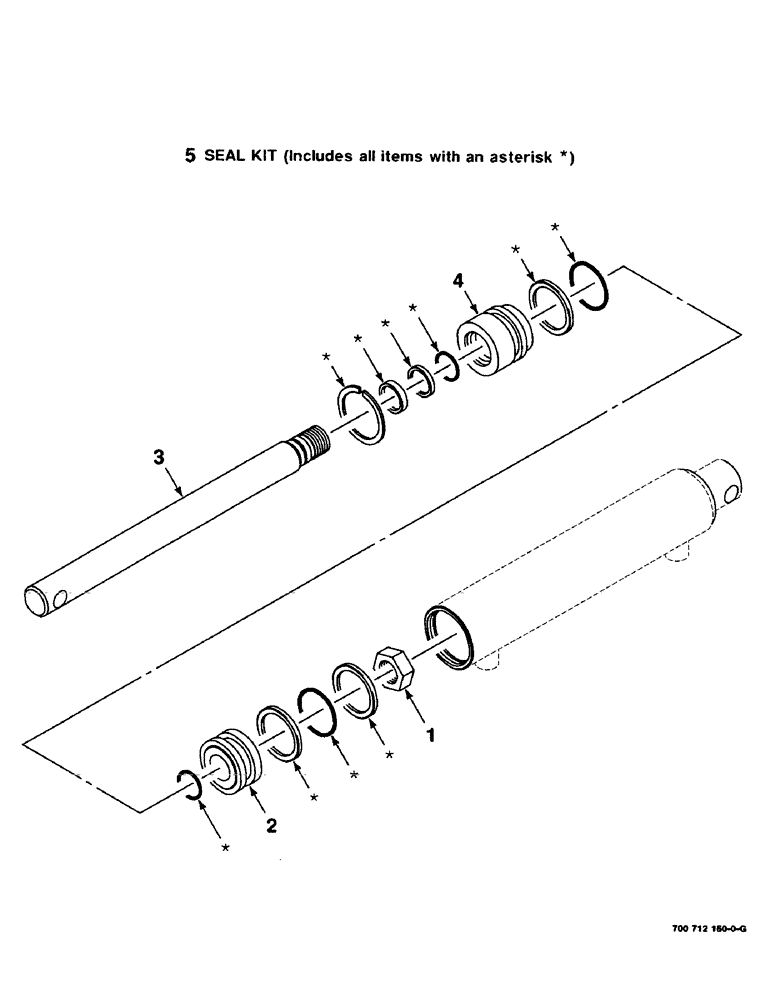

Схема запчастей Case IH 8455T - (8-18) - HYDRAULIC CYLINDER ASSEMBLY, LOWER TENSIONER, 700712160 HYD. CYL. COMPLETE, 2" BORE X 16 " STROKE (07) - HYDRAULICS
3
5
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712160

CYLINDER ASSY.

HYDRAULIC CYLINDER COMPLETE (2 Inch bore x 16 inch stroke)

1шт.

1

700707418

JAM NUT

7/8-14 JAM NUT

1шт.

2

700707419

PISTON

1шт.

3

700708959

ROD

- piston

1шт.

4

700711112

GUIDE

- rod

1шт.

5

700711114

SEAL KIT

SEAL KIT

1шт.
