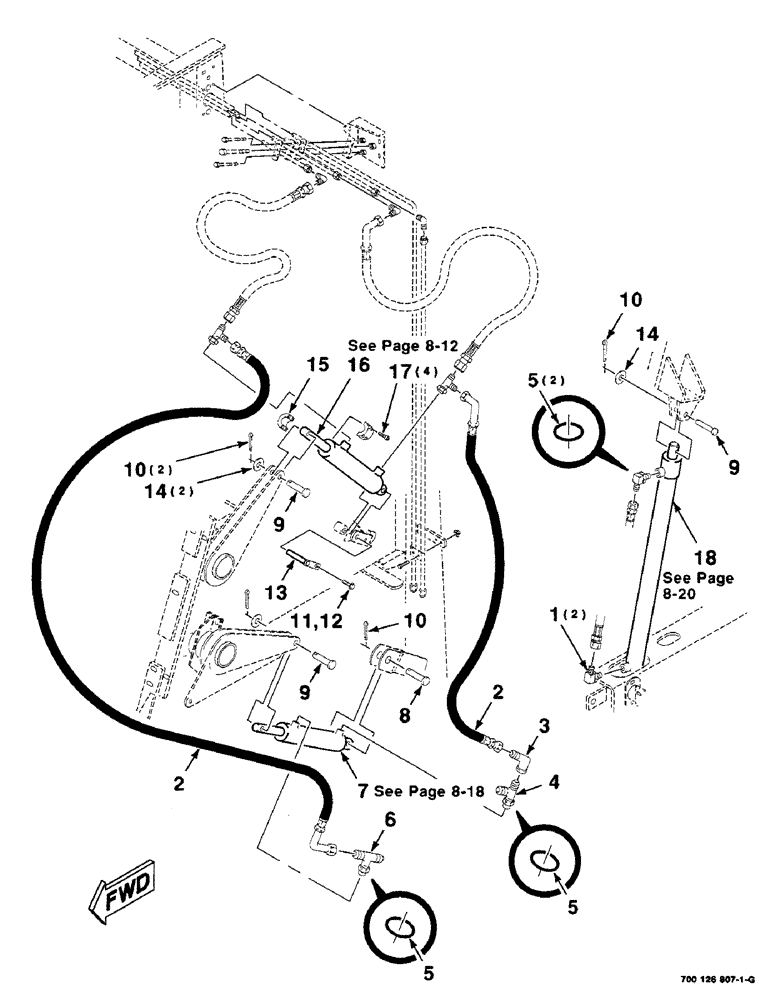

Запчасти Case IH 8455T (8-14) - HYDRAULIC ASSEMBLY, TENSION CONTROL, LEFT (07) - HYDRAULICS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (Includes item 5)

2шт.

2

700707286

HOSE

- hydraulic

2шт.

3

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degrees

1шт.

4

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 5) 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

5

738468

O-RING

4шт.

6

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- straight thread (Includes item 5)

1шт.

7

700712160

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic

1шт.

8

62653

CLEVIS PIN

5/8 X 3 CLEVIS PIN

1шт.

9

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 X 2-1/2 CLEVIS PIN

3шт.

10

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.

11

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

12

231-5146

FLANGE NUT,3/8"-16

1шт.

13

700118823

PIN

WA

1шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

15

700120671

CLAMP

COLLAR

1шт.

16

700712161

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

CYLINDER ASSEMBLY - hydraulic

1шт.

17

461-33116

HEX SOC SCREW,5/16"-18 x 1"

5/16-18 X 1 HSHCS SPL

4шт.

18

700712159

CYLINDER ASSY.

CYLINDER - hydraulic

1шт.
