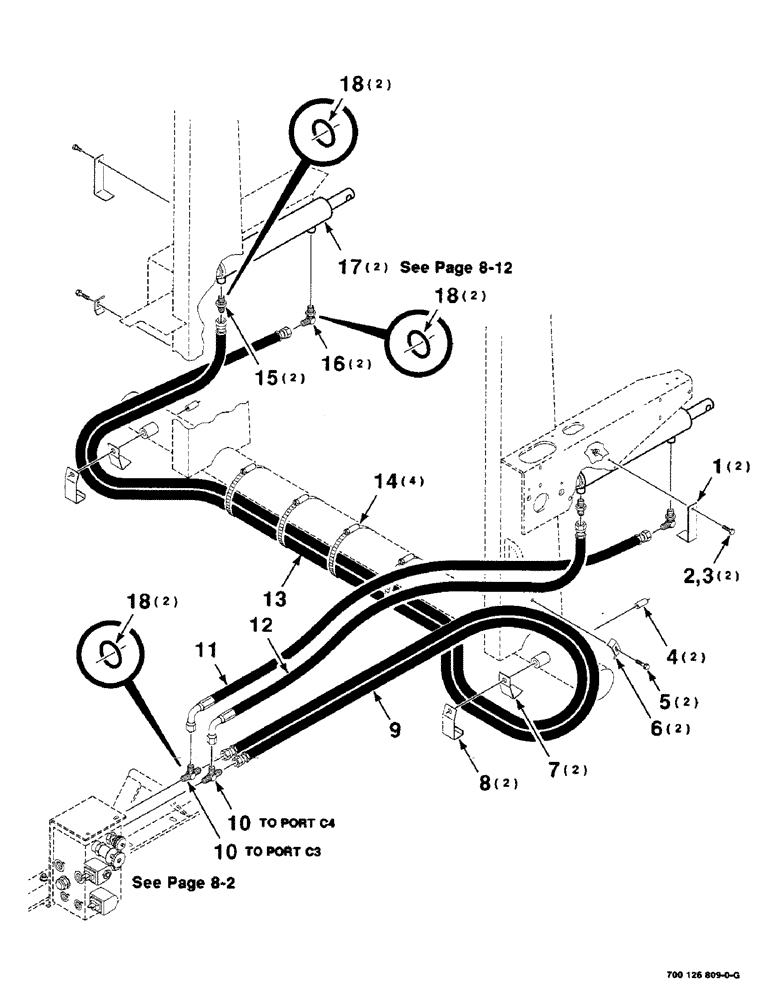

Запчасти Case IH 8455T (8-10) - BALE KICKER HYDRAULIC ASSEMBLY (07) - HYDRAULICS

1

700126370

SUPPORT

- cylinder

2шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

451542

SPACER

2шт.

5

73528

SELF-TAP SCREW

3/8-16 X 1-1/2 HWHTCTS

2шт.

6

6246995

CLAMP

- line

2шт.

7

700118981

CLAMP

- hose

2шт.

8

700118982

CLAMP

- hose

2шт.

9

700709947

HYDRAULIC HOSE,9.65 mm ID x 4300.00 mm, TYPE 100R2

9.65 mm ID x 4300.00 mm, TYPE 100R2

1шт.

10

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 18) 9/16"-18, 37º x 9/16"-18, O-Ring Run

2шт.

11

700710850

HOSE

- hydraulic

1шт.

12

700705575

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

13

700709948

HYDRAULIC HOSE,9.65 mm ID x 4500.00 mm, TYPE 100R2, SAE J516, SAE J517

9.65 mm ID x 4500.00 mm, TYPE 100R2, SAE J516, SAE J517

1шт.

14

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, #64, 3.56/4.50 Type F Worm

4шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - flared (Incl. item 18)

2шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 18)

2шт.

17

700712161

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

CYLINDER ASSEMBLY - hydraulic

2шт.

18

738468

O-RING

6шт.
