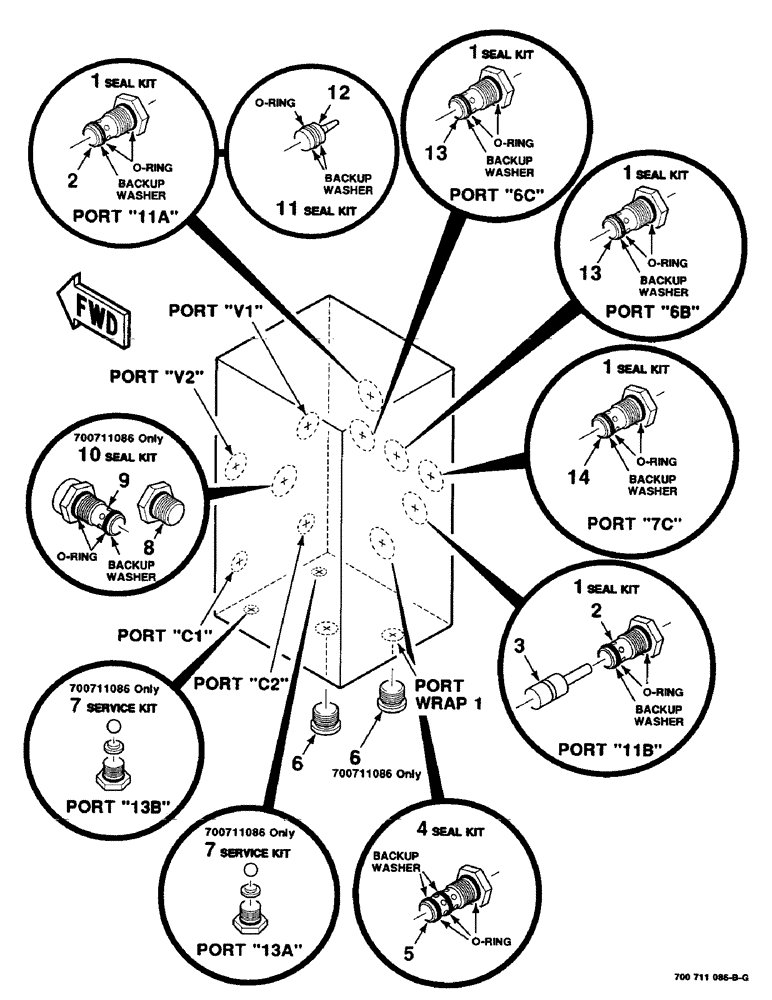

Запчасти Case IH 8455T (8-08) - HYDRAULIC CONTROL VALVE ASSEMBLY, CONTD, 700715719 CTRL. VALVE ASSY. COMPLETE, CONTD FROM PG. 8-6 (07) - HYDRAULICS

1

149942C1

SEAL KIT

6шт.

2

700707833

VALVE, CHECK

VALVE - check

2шт.

3

700712597

PISTON

- pilot (Includes seals)

1шт.

4

700706152

SEAL KIT

1шт.

5

700712619

VALVE

- check

1шт.

6

700707840

PLUG

#6 SAE O-RING PLUG

2шт.

7

700711693

KIT

SERVICE KIT (Includes O-Ring Plug, Spring Guide & Ball)

2шт.

8

700713868

PLUG

- cavity (S.N. CFH0080366 and later)

1шт.

9

700711136

VALVE

- spool (S.N. CFH0080001 thru CFH0080365)

1шт.

10

700711711

SEAL KIT

KIT

1шт.

11

700712631

SEAL

KIT

1шт.

12

700710891

PISTON

- pilot

1шт.

13

700709237

VALVE POPPET

VALVE - check

2шт.

14

700707831

VALVE

- check

1шт.
