(8-06) - HYDRAULIC CONTROL VALVE ASSEMBLY, 700711086 CONTROL VALVE ASSY. COMPLETE, SUPERSEDED BY 700715719

Запчасти Case IH 8455T (8-06) - HYDRAULIC CONTROL VALVE ASSEMBLY, 700711086 CONTROL VALVE ASSY. COMPLETE, SUPERSEDED BY 700715719 (07) - HYDRAULICS

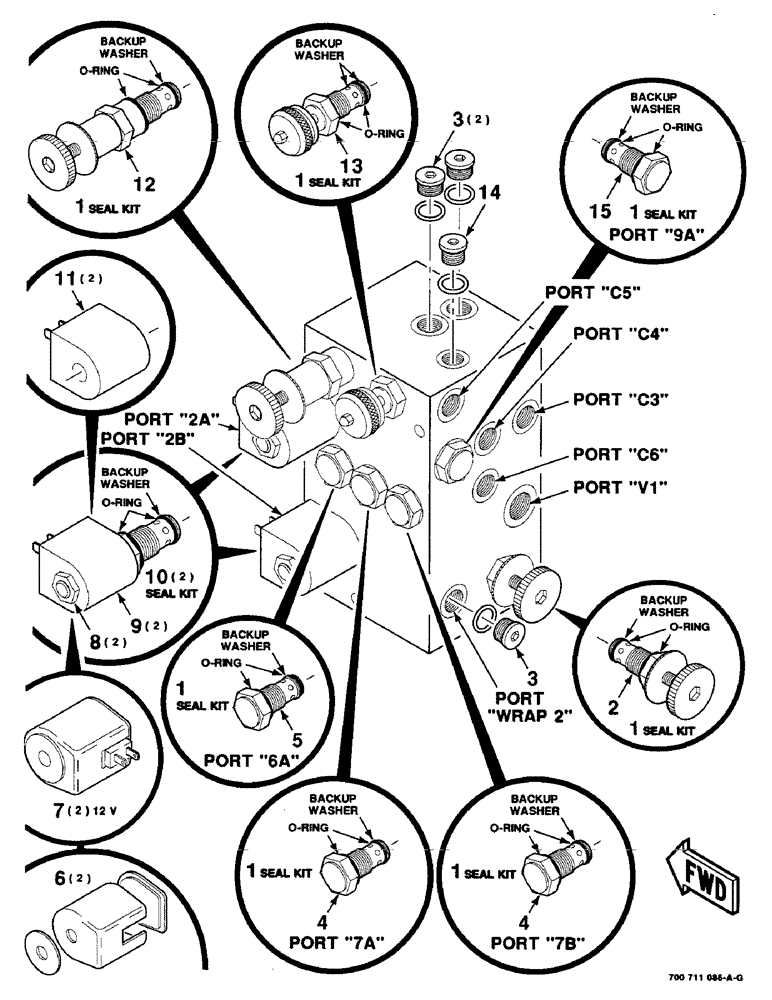

Схема запчастей Case IH 8455T - (8-06) - HYDRAULIC CONTROL VALVE ASSEMBLY, 700711086 CONTROL VALVE ASSY. COMPLETE, SUPERSEDED BY 700715719 (07) - HYDRAULICS
1
5
1
9
1
15
13
4
3
10
6
1
8
1
2
7
1
12
14
3
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700711086

VALVE

CONTROL VALVE ASM. COMPLETE (S.N. CFH0080001 thru CFH0080405)

1шт.

700715719

VALVE

CONTROL VALVE ASM. COMPLETE (S.N. CFH0080406 and later)

1шт.

1

149942C1

SEAL KIT

7шт.

2

700707837

VALVE

- flow

1шт.

3

700707840

PLUG

#6 SAE O-RING PLUG

3шт.

4

700707831

VALVE

- check

2шт.

5

700709237

VALVE POPPET

VALVE - check

1шт.

6

700707826

REPAIR KIT

KIT - coil housing

2шт.

7

700710176

COIL

(12 Volt DC)

2шт.

8

700706151

NUT

2шт.

9

700706610

CARTRIDGE

SOLENOID - valve

2шт.

10

700707215

SEAL KIT

2шт.

11

700706605

MAGNET

COIL - solenoid (Superseded by 700710176 and 700707826)

2шт.

12

700711178

VALVE

- relief

1шт.

13

700706158

DRAINCOCK/TAP SUPPLY

VALVE - needle

1шт.

14

700707835

PLUG

#4 SAE O-RING PLUG

1шт.

15

700707832

VALVE PRESSURE RELIE

VALVE - check

1шт.
