(8-04) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700711910 HYDRAULIC CYL. ASSY. COMPLETE, 2" BORE X 4" STROKE

Запчасти Case IH 8455T (8-04) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700711910 HYDRAULIC CYL. ASSY. COMPLETE, 2" BORE X 4" STROKE (07) - HYDRAULICS

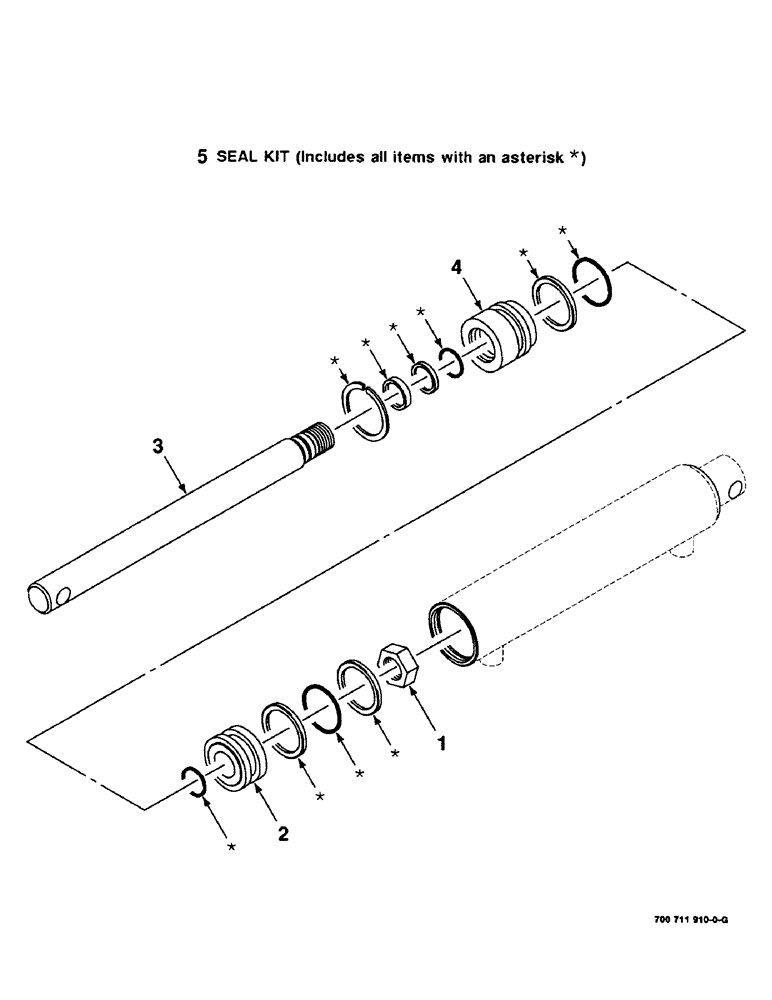

Схема запчастей Case IH 8455T - (8-04) - HYDRAULIC CYLINDER ASSEMBLY, THREADER, 700711910 HYDRAULIC CYL. ASSY. COMPLETE, 2" BORE X 4" STROKE (07) - HYDRAULICS
2
5
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700711910

CYLINDER ASSY.

HYDRAULIC CYLINDER COMPLETE (2 Inch bore x 4 inch stroke)

1шт.

1

700707418

JAM NUT

7/8-14 JAM NUT

1шт.

2

700707419

PISTON

1шт.

3

700711955

PISTON ROD

ROD - piston

1шт.

4

700711112

GUIDE

- rod

1шт.

5

700711114

SEAL KIT

SEAL KIT

1шт.

Выбрано товаров: 6
