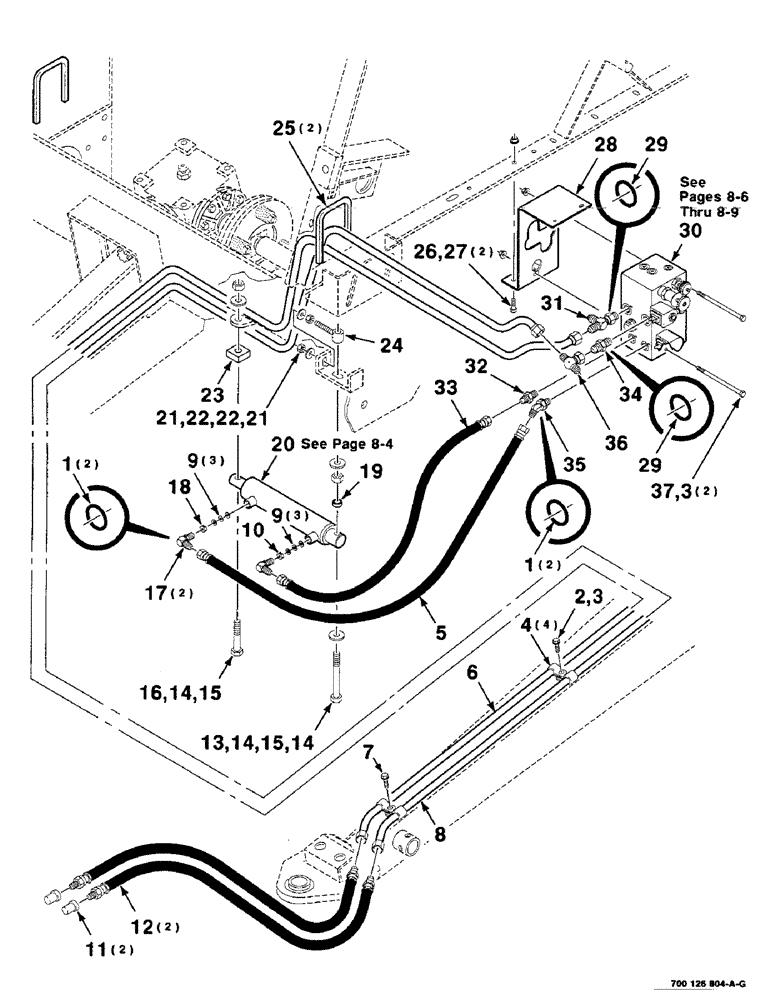

Запчасти Case IH 8455T (8-02) - HYDRAULIC ASSEMBLY, THREADER (07) - HYDRAULICS

1

738468

O-RING

4шт.

2

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

4

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

4шт.

5

700709957

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm, TYPE 100R1

6.35 mm ID x 1400.00 mm, TYPE 100R1

1шт.

6

700711562

TUBE

LINE - hydraulic

1шт.

7

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 X 1 HWHTCTS

1шт.

8

700711561

TUBE

LINE - hydraulic

1шт.

9

700118716

WASHER

- special

6шт.

10

H757815

PORT

ORIFICE - .038 inch

1шт.

11

746677

CAP

1/2-14 NPT CAP

2шт.

12

7072135

HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2

HOSE - hydraulic

2шт.

13

700711989

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8-11 X 4-1/2 C, special

1шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

15

425-1010

NUT,5/8"-11, G5

2шт.

16

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (Includes item 1)

2шт.

18

183546C1

VENT

ORIFICE - .028 inch

1шт.

19

51200241

SPACER

1шт.

20

700711910

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic

1шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

23

700118879

NUT

- special

1шт.

24

700116206

SPECIAL BOLT

DRAWBOLT WA

1шт.

25

700117735

ADHESIVE STRIP

TRIM

2шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

700125031

MOUNTING PARTS

SUPPORT

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

30

700711086

VALVE

ASSEMBLY - hydraulic (S.N. CFH0080001 thru CFH0080405)

1шт.

700715719

VALVE

ASSEMBLY - hydraulic (S.N. CFH0080406 and later)

1шт.

31

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Straight run (Includes item 29) 3/4"-16, 37º x 3/4"-18, O-Ring Run

1шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - flared (Incl. item 1)

1шт.

33

812382C1

HYDRAULIC HOSE

HOSE - hydraulic

1шт.

34

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - flared (Incl. item 29)

1шт.

35

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR - flared (Includes item 1)

1шт.

36

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel branch

1шт.

37

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

2шт.
