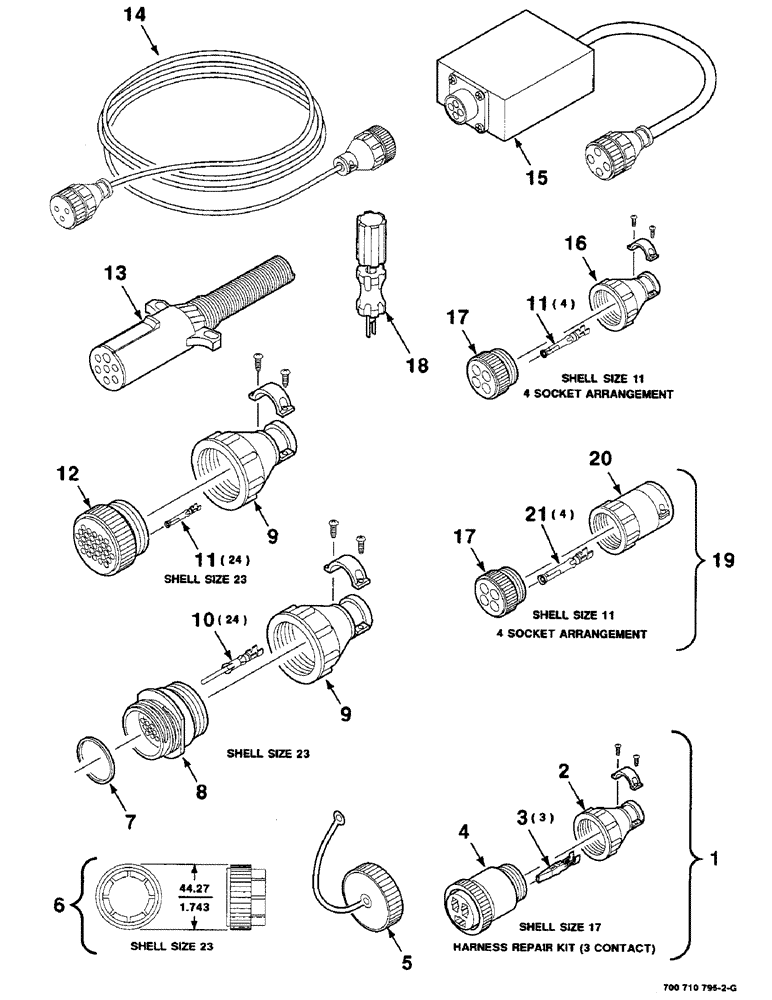

Запчасти Case IH 8455T (4-18) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL

1

1714005

PACKAGE,SERVICE

KIT - harness repair (Female end) (Includes items 2, 3 and 4)

1шт.

2

225153C1

CONTACT HOUSING

CLAMP (Shell size 17)

1шт.

3

700710620

TERMINAL

CONTACT - female (16-12 Gauge)

1шт.

4

225165C1

ELEC CONNECTOR

CONNECTOR - 3 socket, female (Includes item 3)

1шт.

5

700711664

CAP

- sealing

1шт.

6

60-6129T2

CONNECTION

RING - coupling (Shell size 23)

1шт.

7

700711660

SEAL

- peripheral

1шт.

8

700711255

ROD, CONNECTING

RECEPTACLE - 24 pin male (Shell size 23)

1шт.

9

245491C1

ELEC CONNECTOR

CLAMP - cable (Shell size 23)

1шт.

10

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

PIN

1шт.

11

700708758

TERMINAL

SOCKET

1шт.

12

131498C1

ELEC CONNECTOR

PLUG - 24 socket, female (Includes item 19)

1шт.

13

700715341

PLUG

- 7 pin domestic

1шт.

14

700712135

WIRE HARNESS

CABLE ASSEMBLY (Cable for imported tractors only)

1шт.

15

700715718

FILTER

- electronic noise

1шт.

16

700709233

CLAMP

(Shell size 11)

1шт.

17

700709232

POWER SOCKET

RECEPTACLE - 4 socket, female

1шт.

18

700707014

TERMINAL CONNECTOR

TOOL CONNECTOR REPAIR

1шт.

19

700712132

REPAIR KIT

RECEPTACLE REPAIR KIT - 4 socket, female (Includes items 17, 20 and 21)

1шт.

20

1994741C1

CONTACT HOUSING

CLAMP (Shell size 11)

1шт.

21

700718607

TERMINAL

CONTACT - female

1шт.
