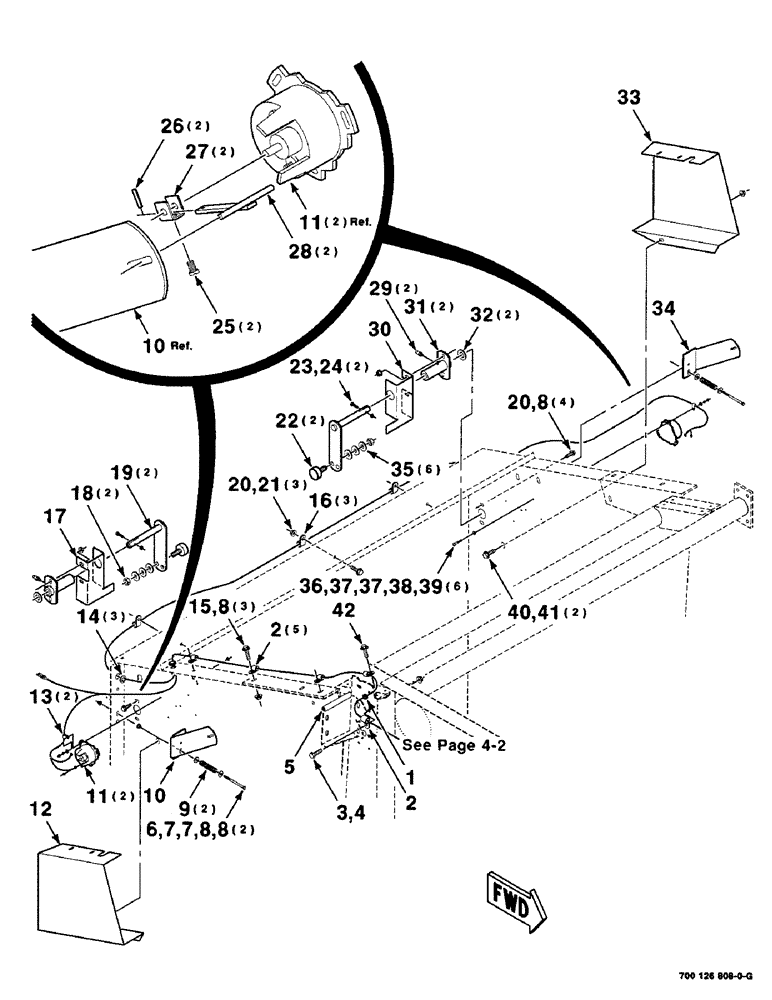

Запчасти Case IH 8455T (4-10) - ELECTRICAL HARNESS ASSEMBLY, REAR (06) - ELECTRICAL

1

700708340

GROMMET

1шт.

2

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

6шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

5

700120657

ORNAMENTAL STRIP

GROMMET

1шт.

6

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

5/16-18 X 5-1/2 C

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

11шт.

9

700713440

SPRING

2шт.

10

700125045

SHEAVE

ARM WA - right

1шт.

11

700710799

INDICATOR

- position (Includes items 25 and 27)

2шт.

12

700125043

SHIELD

- right

1шт.

13

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

2шт.

14

7827983

GROMMET

3шт.

15

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

3шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

17

700130848

STOP

- right

1шт.

18

702700045

LOCK NUT

- spiralock

2шт.

19

700128320

CRANK

WA

2шт.

20

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

7шт.

21

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.

22

700705612

CAM FOLLOWER

BEARING - cam

2шт.

23

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

2шт.

24

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

2шт.

25

700713324

SCREW

2шт.

26

20948R1

PIN,1/8" x 5/8", Coiled

2шт.

27

700713323

BRACKET

2шт.

28

700129378

LEVER

WA

2шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

30

700130847

STOP

- left

1шт.

31

700116140

SUPPORT

WA

2шт.

32

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

33

700125044

SHIELD

- left

1шт.

34

700125046

ARM

WA - left

1шт.

35

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

6шт.

36

340-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

#8-32 X 3/4 CRPHMS

6шт.

37

495-21019

WASHER,#8

12шт.

38

492-11008

LOCK WASHER,#8

Washer, Lock, #8

6шт.

39

225-14108

NUT,#8-32

H GR2 #8-32

6шт.

40

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

41

231-5146

FLANGE NUT,3/8"-16

2шт.

42

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

1шт.
