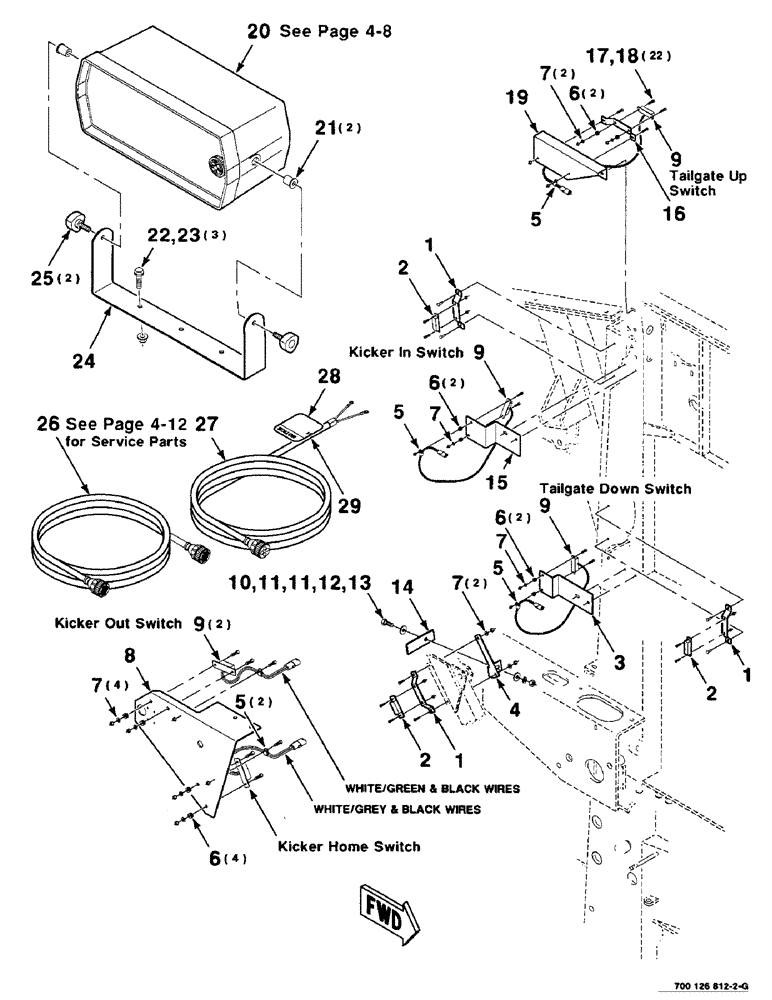

Запчасти Case IH 8455T (4-06) - MISCELLANEOUS ELECTRICAL ASSEMBLIES (06) - ELECTRICAL

1

700122574

SUPPORT

- actuator

3шт.

2

700709996

SWITCH

ACTUATOR

3шт.

3

700122570

SUPPORT

- switch

1шт.

4

700126948

SUPPORT

1шт.

5

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

5шт.

6

700710199

GROMMET

10шт.

7

700710187

WASHER

#6 WPW STAINLESS STEEL

9шт.

8

700122476

SUPPORT

- switch

1шт.

9

700710208

ROTARY SWITCH

SWITCH - assembly

5шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

1713155

FLAP

- counter

1шт.

15

700128332

SUPPORT

- switch

1шт.

16

700122573

SUPPORT

- switch

1шт.

17

700710188

SCREW

#6-32 X 3/4 CRPHMS GR2

22шт.

18

700710189

LOCK NUT

#6-32 LHSN

22шт.

19

700122568

SUPPORT

- switch

1шт.

20

700713345

CONTROL

BOX COMPLETE

1шт.

21

700707294

PUSH-ON NUT

RUBBER WELL NUT

2шт.

22

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

3шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

24

700114077

SUPPORT

- control box

1шт.

25

700707295

KNOB

2шт.

26

700710794

HARNESS

- wire

1шт.

27

700707598

WIRE HARNESS

CABLE ASSEMBLY

1шт.

28

700707683

DECAL

- notice, 12 volt

1шт.

29

869707C1

STRAP,368.3mm L

TIE - cable

1шт.
